Home Xingtai Winway Import and Export Trading Co., Ltd. Ww-5133 Non-Asbestos, Yb100 Motorcycle Brake Shoe,

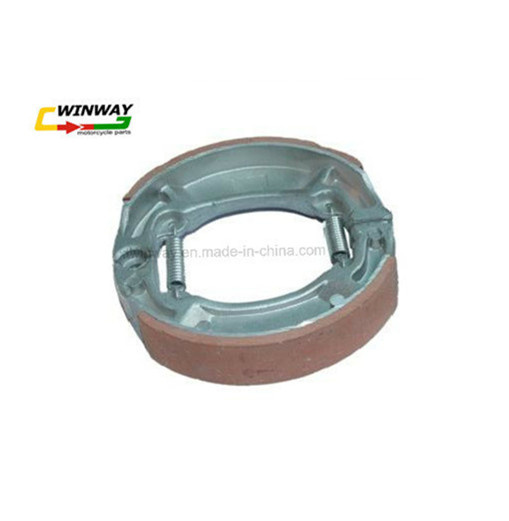

Ww-5133 Non-Asbestos, Yb100 Motorcycle Brake Shoe,
| Price: | US $ 0.60-0.61/Pairs |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1000/Pairs |
| Pay Type: | L/C,T/T,D/P,Western Union |
Specifications
| Prod Model: | WW-5133 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Model: | Yb100 |
| Color: | Yellow |
| Key Words: | Brake Shoe |
| Package: | Box |
| Type: | Motorcycle Brake |
| Certification: | SGS |
| Material: | Alloy |
Product Description
WW-5133 YB100 Motorcycle Brake Shoe, Motorcycle PartThe brake oars of this product are fabricated with high quality aluminum alloy material (ADC12). The tholes are designed scientifically and reasonably with equal back force distributed, which makes the tholes have resistance to rupture and shape change advantages. The shoe brake is manufactured with excellent abrasion resisting carbon fiber characterized by resistance to abrasion and high temperature. The shoe brake is cohered with brake oars through import cement heating and the shear strength is ≥3.72Mpa.
Technical performance requirements are in the following table:
2.Impact strength,hardness index is in line withGB5763.
3.Refer to samples for color.
4.No defects on the brake pads,such as cracks,scars and uneven.
5.No grease on the surface of brake pads.
Spring Material65# Mn Steel
Flat Button Material40# Mn Steel
Shoe surface:Electrostatic painting
1. The frame is made of high quality aluminum alloy, cast under high pressure, color electroplated for rust resisting.
2. The friction disc is made of synthetic material according to original factory standard, provided with such characteristics as stable friction coefficient, excellent wear resisting performance, and not damaging the wheel hub.
| Item Name | Motorcycle brake shoe |
| performance | high temperature resistance & Wear Resistance |
| Shear strength | ≥3.72 |
| Customized Design&Size | Available |
| Material | abrasion resisting carbon fiber |
| OEM | Acceptable |
| Mixed Container | Acceptable |
| Package Details | Small Box+Cartons |
| MOQ | 500 Pairs |
| Loading Port | Tianjin/Shanghai |
| Delivery detail | 25days,after order confirm |
| Main market | Middle east,Africa,South America |
Advantage: Good package, Competitive Price, Fast Shipment
Remarks: All of parts can be customized.
Delivery time: Within 20-25 days after the deposit, accept trial order.
Payment term: 30 % TT for deposit, Balance before shipment.
