Ww-5121 Semi-Metallic, Wy125 Motorcycle Shoe Brake
| Price: | US $ 0.66-0.67/Pairs |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1000/Pairs |
| Pay Type: | L/C,T/T,D/P |
Specifications
| Prod Model: | WW-5121 |
|---|---|
| Markets: | South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Model: | Wy125 |
| Raw Material: | Semi-Metallic |
| Key Words: | Brake Shoe |
| Inner Package: | Box |
| Type: | Motorcycle Brake |
| Material: | Alloy |
| Certification: | SGS |
Product Description

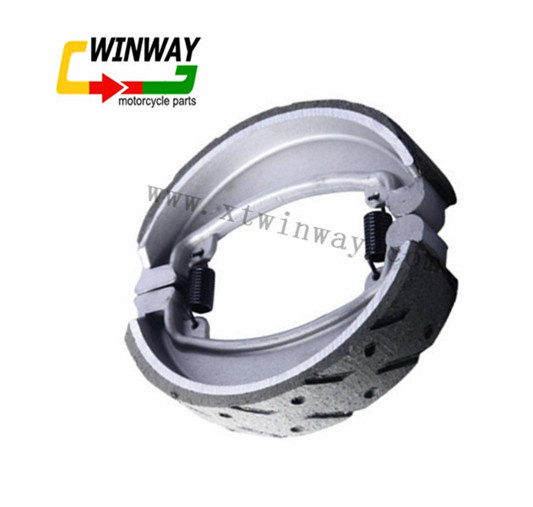

WW-5121 WY125 Motorcycle brake shoe, motorcycle part OEM:43120-362-000Material: Non-asbestos or Asbestos optional.
-Friction material
-T-Type aluminium alloy framework
-reliable overall stiffness
-strong braking power
- no noise at all
-reasonable price
-offer various models
This part is made through advanced special large die-casting device with high quality special attrition material (but not asbestos or half metal copper base). Through plane special processing for its inter-face, the part is ensured to have high percentage of contact area. The brake shoe is manufactured strictly according to the national standard of Gr5763-1998 to ensure strong resistance to abrasion and prevent from brake inefficiency, brake deflection or brake shoe abruption.
Technical performance requirements are in the following table:
2.Impact strength,hardness index is in line withGB5763.
3.Refer to samples for color.
4.No defects on the brake pads,such as cracks,scars and uneven.
5.No grease on the surface of brake pads.
Spring Material65# Mn Steel
Flat Button Material40# Mn Steel
Shoe surface:Electrostatic painting
| Item Name | Motorcycle brake shoe |
| performance | high temperature resistance & Wear Resistance |
| Shear strength | ≥3.72 |
| Customized Design&Size | Available |
| Material | abrasion resisting carbon fiber |
| OEM | Acceptable |
| Mixed Container | Acceptable |
| Flat button material | 40# Mn steel |
| Spring material | 65# Mn steel |
| Surface treatment | Sandblasting passivation |
| Package Details | Small Box+Cartons |
| MOQ | 500 Pairs |
| Loading Port | Tianjin/Shanghai |
| Delivery detail | 25days,after order confirm |
| Main market | Middle east,Africa,South America |
1.Stable friction material for motorcycle brake shoes.
2.Excellent friction property, lower wear rate and high rotary burst strength in high temperature with good durability.
3.Standard size, proper hardness and strength
4.A complete rang of specifications and a great variety of modles.
5.We are factory,one-stop serive,make sure you buy the best quality products in the most affordable price.
Suitable:HONDA/SUZUKI/YAMAHA......
The Material of Brake Shoe-- Aluminum rack: ADC12 Aluminum Alloy
The aluminum rack of brake shoes are processed by 180 ton high pressure casting machine, which will ensure the aluminum rack is hard and high density without any air bubble inside.
The Material of Brake Shoe-Brake lining: asbestos, non-asbestos, soft leather
The special formulations of this brake shoes friction material make it Low noise, good thermal recession and recovery, good performance of water recession.
Our factory main products is for brake shoe / brake pad / clutch plate .
Our factory started from 1987 , until now it has 27 years . Throught many years to study how is the best brake shoe , how to offer our customers good products and hope our customer to get more reputation and expand brand market .
