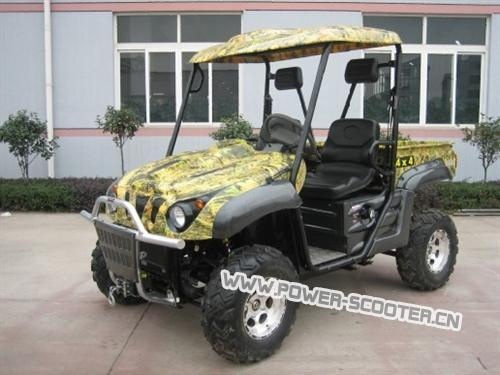

UTV (TPNS-UV650C -EE)

Specifications

Prod Model:	TPNS-UV650C -EE

Product Description

UTV (TPNS-UV650C -EE)
SPECIFICATION EPA, CARB, EEC approved
EEC and EPA APPROVED
Engine:
Producer: LIUZHOU WULING
Type: 2 cylinders, 4-stroke, liquid-cooled
Bore x stroke: 76mm - 71mm
Displacement: 644cc
Compression ratio: 8.4: 1
Carburetor: BJH101E
Max. Power: 20.6kW/5, 300rpm
Maximum torque: 44/2, 700~3, 300N. M/r/min
Starting: Electric
Ignition: CDI
Lubrication: Force and splash
Transmission: Manual clutch, 4-shift/reverse
Spark plug: F6T or F6TC
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30

Capacities:
Turning radius: 157.5" (4, 000mm)
Fuel tank: 30.0L
Engine oil: 2, 900ml
Coolant: 4, 000ml
Starting: <5s
Climbing: 20"- 25''
Battery: 12V, 52Ah
Head light: 12V, 80W/both
Tail light: 12V 52W/both
Fuse: 35A
Max. Speed: 35 miles/h
Max. Load capacity: 400kg

Chassis:
Brake: Hydraulic disc both on front and rear, right foot control
Front tire: 25x10-12
Rear tire: 25x10-12
Suspension: Independent dual A-arm both front and rear
Drive train: 2WD/4WD shaft controllable

Dimension
Overall length: 116in. (2, 950mm)
Overall width: 62in. (1, 580mm)
Overall height: 72in. (1, 830mm)
Wheelbase: 78in. (1, 990mm)
Front track: 48in. (1, 220mm)
Rear track: 47in. (1.200mm)
Ground clearance: 11.6in. (295mm)

Conveyance
Shpping info: 6PCS(20'')/14PCS(40HQ)
N. W. /G. W.: 565kg /615kg

WHOLE MACHINE DIMENSIONS
Overall Length: 2700mm
Overall Width: 1450mm
Overall Height: 1830mm
Wheelbase: 1750mm
Front Track: 1450mm
RearTrack: 1450mm
Ground Clearance: 250mm

ENGINE
Type: 2 cylinders, 4-Stroke, water-cooled
Bore x Stroke: 76mm-71mm
Displacement: 644 cc
Compression ratio: 8.4: 1
Carburetor: BJH101E
Max Power: 20.6kw/5300rpm
Maximum Torque: 44/2700~3300Nm/r/min
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4 shift/Reverse/Automatic
Spark Plug: F6T or F6TC
Plug gap: 0.7-0.1mm
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30

CAPACITIES
Turning radius: 157.5 in(4000mm)
Fuel tank: 25.0L
Engine oil: 2900ml
Coolant: 4000ml
Starting: <5s
Climbing: 20-35
Battery: 12V36Ah
Head Light: 12V 80W/Both
Tail Light: 12V 52W/Both
Fuse: 35A
Max speed: 40 miles/h

CHASSIS
Front, Rear brake: Hydraulic disc, right foot control
Front tire: 25-10-12
Rear tire: 25-10-12
Front Suspension: Independent Dual A-Arm
Rear Suspension: Independent Dual A-Arm
Drive Train: 2WD/4WD Shaft

T IRE PRESSURE
Front: 205kpa 2.1kg/ 30psi
Rear: 205kpa 2.1kg/ 30psi
WEIGHT EEC UTV 650CC Max load capacity: 500kg
Net Weight: 565kg 20' CONTAINER: 6 PCS
40' HQ CONTAINER: 14 PCS
