Specifications
Prod Model: |
GBT700UTV-5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
700CC Uy\TV: |
Water Cooled, 4-Stroke, 1-Cylinder |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Two Side Doors |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Transmission System: |
Axle |
Displacement: |
700CC |
Product Description

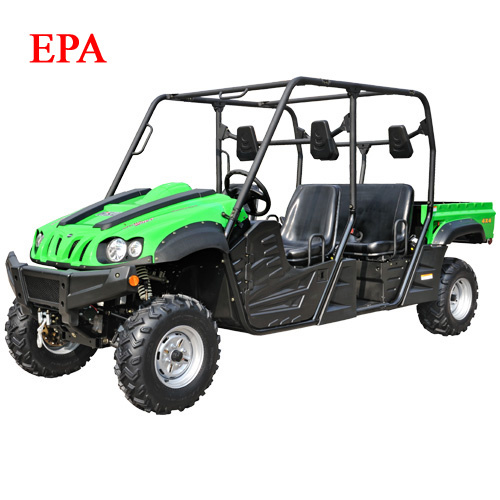

GBT700UTV-5 EPA
Specifications
ENGINE
Type: 686CC, Water cooled, 4-stroke, 1-cylinder
Bore x Stroke: 102mm x 84mm
Compression Ratio: 9.2: 1
Ignition: EFI
Starting: Electric
Transmission: L-H-N-R
Drive Train: Axle
CHASSIS
Suspension: Independent double swing arm
Suspension/Rear: Independent double swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Dual ventilated hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 3950mm x 1430mm x1900mm
Seat Height: 790mm
Wheelbase: 2870mm
Ground Clearance: 245mm
Fuel Capacity: 30L
Dry Weight: 669kg
OTHER
Lighting: 12V35W/35W x 2(front); 12V. 5W/21W x 1(rear)
Warranty: 12 months
Loading Quantity: 10PCS/40'HQ
