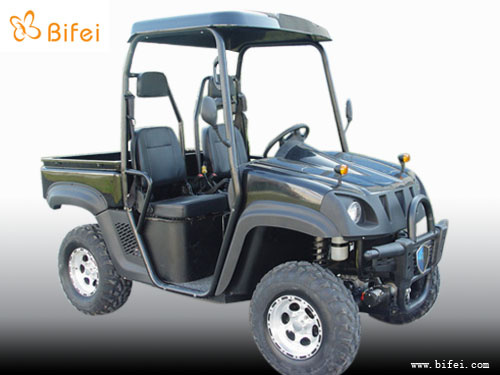

Home Zhejiang Bifei I&E Co., Ltd. UTV (BFU-300-4x4)
Specifications
| Prod Model: | BFU-300-4x4 |
|---|
Product Description
1)product dimensions (mm): 2690*1280*19602)Wheelbase (mm): 1730
3)Wheel span (mm): A) Fr: 1036 b) Re: 1040
4)Ground clearance(mm): 220MM
ENGINE
5)Type: Single cylinder, 4-Stroke, Liquid-cooled
6)Bore*Stroke(mm): 72.75*66.8
7)Displacement: 278ml/18.8HP
8)Compression ratio: 10: 1
9)Starting: TCI
10)Transmission: Automatic clutch(H/L/N/R)
11)4x4/4x2 switchable: Rear-wheel drive is normal drive, front Wheel Drive can be torn off; Shaft drive
CAPACITIES
12)Turning radius (mm): 4500
13)Fuel tank: 20.0L
14)Battery: 12V
15)Max speed: H: 58km/h L: 30km/h
WEIGHT
16)Max load capacity: 500kg
17)Net Weight: 550kg
18)Gross Weight: 650kg
