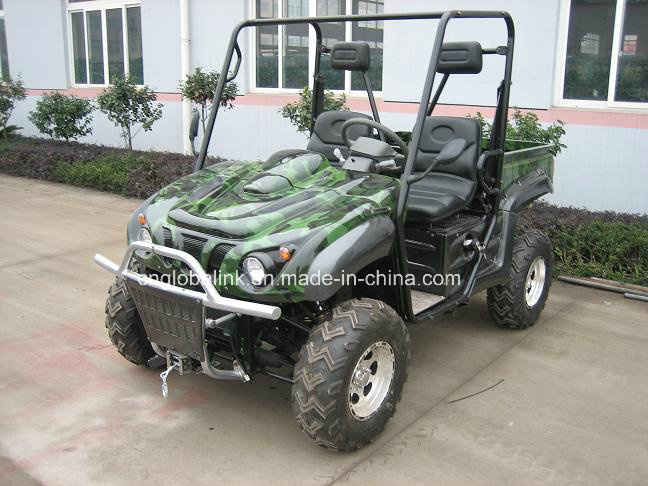

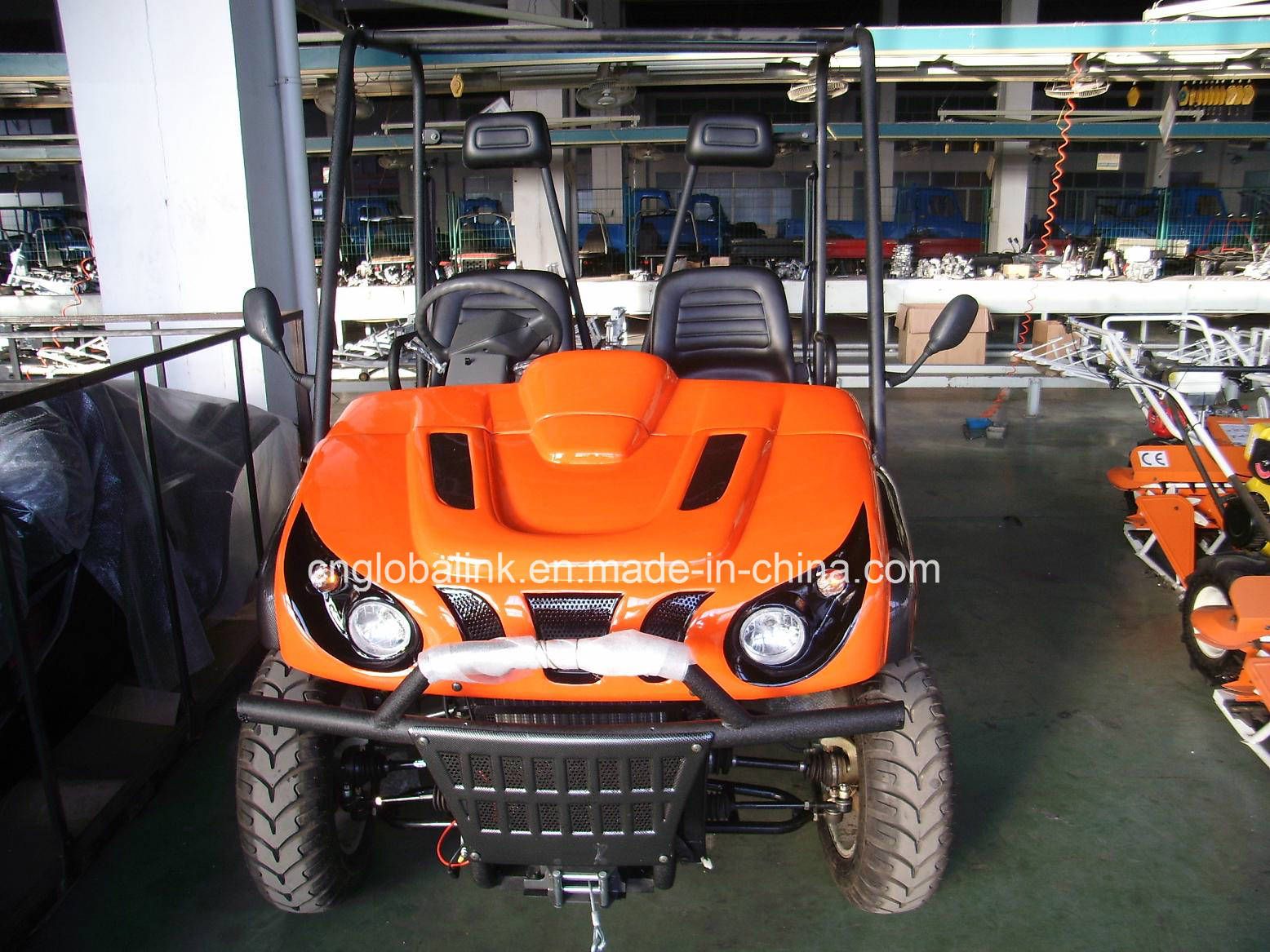

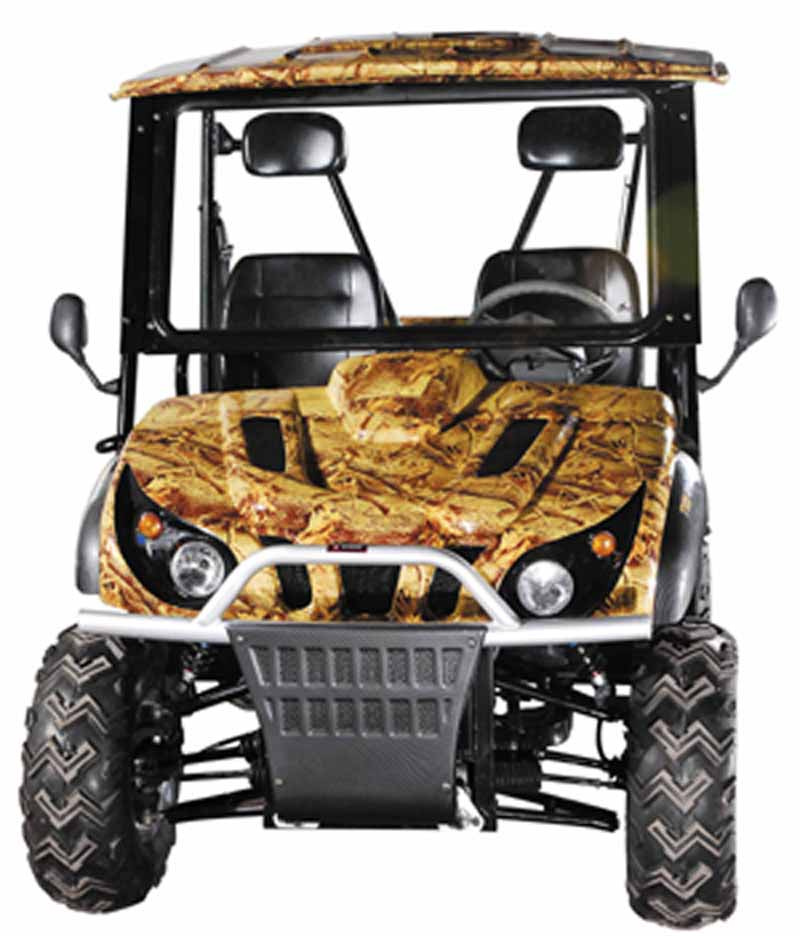

UTV 800cc 800A
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | 800A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Volume: | <10000L |
| Type: | UTV |
| Transmission Type: | Automatic |
| Engine Type: | 2 Stroke |
| Structure: | Two Side Doors |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Drum Brake |
| Maximum Speed: | 50-75 km/h |
| Power: | 800-1000W |
| Certification: | EPA |
| Condition: | New |
| Displacement: | 600cc |
| Brand: | Gl |
Product Description
MODEL: TNS-UV800AWHOLE MACHINE DIMENSIONS
Overall Length: 2700mm
Overall Width: 1450mm
Overall Height: 1830mm
Wheelbase: 1750mm
Front Track: 1450mm
RearTrack: 1450mm
Ground Clearance: 250mm
ENGINE
Type: 3 cylinders, 4-stroke, liquid-cooled
Bore x Stroke: 68.5mm x 72mm
Displacement: 796cc
Compression ratio: 9.4: 1
Carburetor: LJ368QE
Max Power: 29.5/5000(kw/r/min)
Maximum Torque: 65 N. M /(3000~4000rpm)
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4-shift/reverse
Spark Plug: F6T or F6TC
Plug gap: 0.7± 0.1mm
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30
CAPACITIES
Turning radius: 157.5 in(4000mm)
Fuel tank: 25.0L
Engine oil: 2900ml
Coolant: 4000ml
Starting: <5s
Climbing: 20° -35°
Battery: 12V36Ah
Head Light: 12V 80W/Both
Tail Light: 12V 52W/Both
Fuse: 35A
Max speed: 80 km/h
CHASSIS
Front, Rear brake: Hydraulic disc, right foot control
Front tire: 25× 10-12
Rear tire: 25× 10-12
Front Suspension: Independent Dual A-Arm
Rear Suspension: Independent Dual A-Arm
Drive Train: 2WD/4WD Shaft
T IRE PRESSURE
Front: 205kpa 2.1kg/cm2 30psi
Rear: 205kpa 2.1kg/cm2 30psi
WEIGHT
Max load capacity: 500kg
Net Weight: 565kg
CONTAINER LOADS
20' CONTAINER: 6 PCS
40' HQ CONTAINER: 14 PCS
Globalink International Limited concentrates on international business. Specializing in supplying PU foam machine, foam cutting machine, foam laminating machine and foam recycle machine etc. We export to American, England, French, Holland, Germany, Mexico, Hong Kong, Korea, Algeria, Bandladesh, Sri Lanka, Morocco, Mali, Tunis, Egypt etc.
We can provides a Multiplex trade service by expert's quality and specialized standards to our customers, and we success obtains approval and support from our customers that causes our business up day by day! We have very strong flexibility, simultaneously the quite competitive advantage especially are organizing source of goods, quality control, transportation arrangement, and declaration commodity inspection etc. We supply a perfect service system that can assist our customers to save cost and to save time.
Service objective: Honest is foundation of the enterprise to survive and develop, Honor is the request of the enterprise to competitive in society.
We can provides a Multiplex trade service by expert's quality and specialized standards to our customers, and we success obtains approval and support from our customers that causes our business up day by day! We have very strong flexibility, simultaneously the quite competitive advantage especially are organizing source of goods, quality control, transportation arrangement, and declaration commodity inspection etc. We supply a perfect service system that can assist our customers to save cost and to save time.
Service objective: Honest is foundation of the enterprise to survive and develop, Honor is the request of the enterprise to competitive in society.
