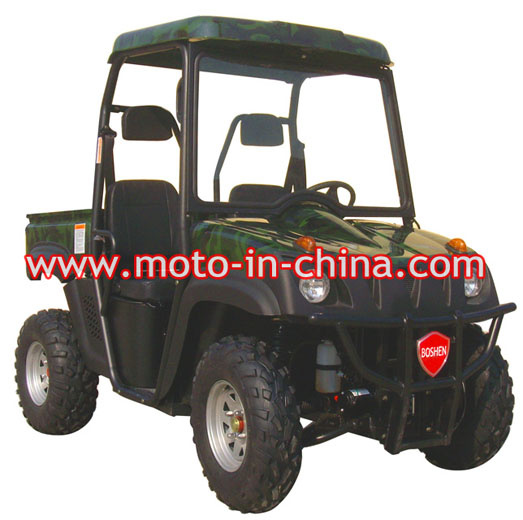

Utility Vehicle with 2 Seats (BON-UTV 500-4WD)

Specifications

Product Description

Products Information:
(1) Product dimensions: 2, 690 X 1, 280 X 1, 960mm
(2) Minimum turing radius: 4650mm
(3) Transmission: CVTand P/R/N/L/H
(4) Brake Type: F: Dual disc brake R: Single disc brake
(5) Minimum ground clearance: 195mm

Engine specifications:
(6) Type: Liquid-cooled four-stroke, SOHC
(7) Bore X stroke: 87.5 X 82mm(3.44X3.23in)
(8) Displacement: 493cm3
(9) Compression ration: 10.2: 1
(10) Starting mode: Electric and recoil starter
(11) cylinder arragement: Forward-inclined single cylinder
(12) Oil Capacity: 2.2L
(13) Carburetion: MIKUNI BSR36-89

Capacities:
(14) Fuel tank: 22.0L
(15) Battery: 12V
(16) Maximum speed: 70kph
(17) Maximum loading capacity: 500kg
(18) Net weight: 550kg
