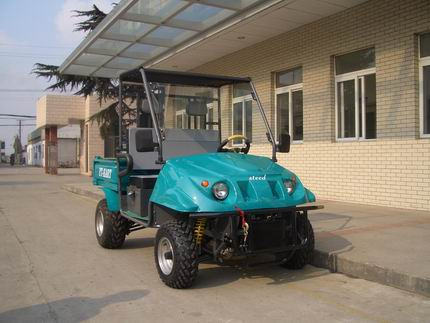

Home Zhejiang Seven Eleven Industrial & Trading Co., Ltd. Utility Vehicle (FM01)
Specifications
| Prod Model: | Untility Vehicle FM01 |
|---|
Product Description
NO ITEM DESCRIPTION1 Dimension(LxWxH) 2500x1400x1740mm
2 Proper mass of empty vehicle N. W 400kgs; G. W 450kgs
3 Packing size 2300x1260x920mm
4 Quantities per container 20 FT FCL: 8SETS; 40 FT FCL: 18SETS
5 Wheelbase 1740mm
6 Front track 1120mm
7 Rear track 1060mm
8 Ground clearance 180mm
9 Suspension system Independent suspension both front and rear.
10 Traction system Rear Axle-Driven
11 Seat height 920mm
12 Front tire 21x7-8
13 Rear tire 22x10-10
14 Other fitting Winch
15 Engine Type Single cylinder forced water-cooled 4-stroke
16 Engine displacement 244ml
17 Engine corrected compression ratio 10: 1
18 Engine output power 10. 5kw/6000rpm
19 Engine maximum torque 17. 6N. M/5500r/min
20 Engine starting Electric
21 Engine Ignition CDI
22 Engine lubrication Force & Splash
23 Engine Automatic CVT
24 Spark plug C7HSA (NGK)
25 Fuel brand RQ-90(Leadless)
26 Lubricate oil brand SAE10W-40
27 Carrier box load 180kgs
28 Fuel tank 18L
29 Starting 5s
30 Climbing 22o
31 Highest speed 55km/h
32 Battery 12V36AH
33 Head lamp 12V21W
34 Tail lamp 12V21/5W
35 Horn 12V5W
36 Fuse 20A
37 Front and rear brake Hydraulic disc/right foot control
38 Brake track <7m@30km/h
39 Windlass load 600kgs
40 Hydraulic mandril of Carrier box 500kgs
