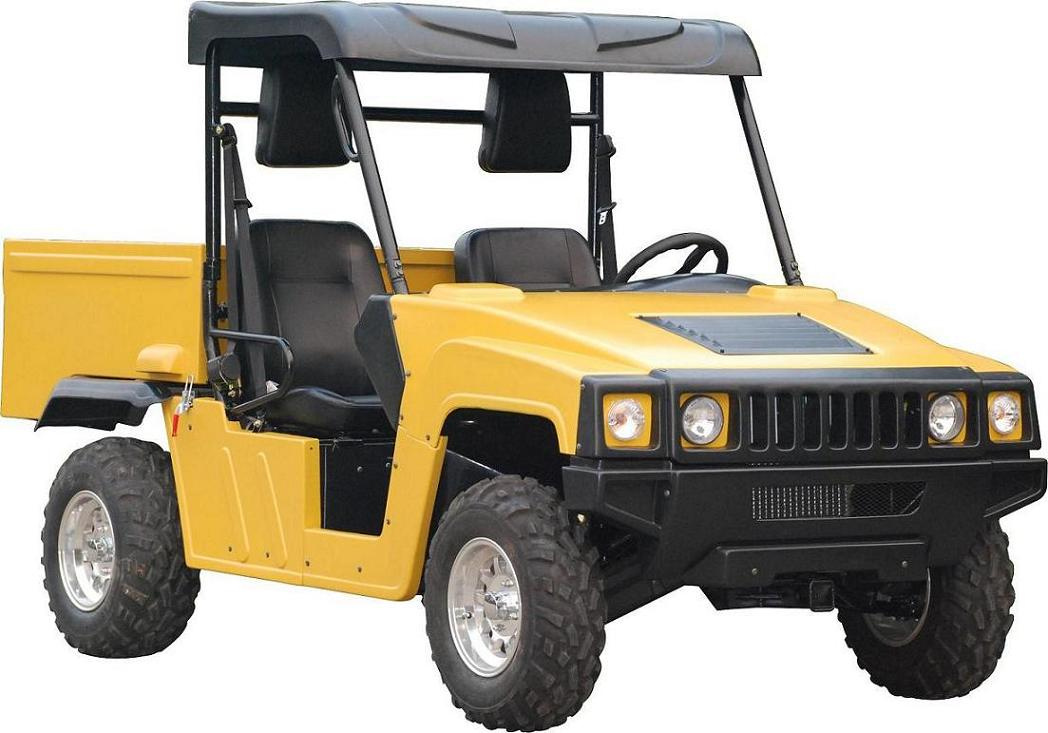

Utility Truck / Utility Vehicle (YTK-650)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
| Prod Model: | YTK-650 |
|---|
Product Description
DIMENSIONSOverall Length: 116 in. (2950mm)
Overall Width: 62 in. (1580mm)
Overall Height: 72 in. (1830mm)
Wheelbase 78 in.: (1990mm)
F. Track 48 in.: (1220mm)
R. Track 47in.: (1200mm)
Ground clearance: 11.6in. (295mm)
ENGINE
Type: 2-Bore, 4-stroke, Liquid-cooling
Bore X stroke: 76mmx71mm
Efficient capacity: 644 CC
Compression ratio: 8.4: 1
Carburetor: BJH101E or CSH101E
Max power : 20.6kw/5300rpm
Maximum torque: 44/2700~3300Nm/r/min
Starting system: Electrical
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4 shift/Reverse
Spark plug: F6T or F6TC
Plug gap: 0.7± 0.1mm
Fuel type : RQ93 (unleaded)
Lubricate oil: SAE-15W/30
CAPACITIES
Turning radius: 157.5 in(4000mm)
Fuel tank: 25.0L
Engine oil: 2900ml
Coolant: 4000ml
Starting: <5s
Climbing: 25° -35°
Battery: 12V36Ah
Head Light: 12V 80W/Both
Tail Light: 12V 52W/Both
Fuse: 35A
Max speed : 36 miles/h
CHASSIS
F., R. Brake: Hydraulic disc, right foot control
F. Tire: 25X8-12
R. Tire: 25X10-12
F. Suspension: Independent Dual A-Arm
R. Suspension: Independent Dual A-Arm
Drive Train: 2WD/4WD Shaft
TIRE PRESSURE
F.: 205kpa 2.1kg/cm² 30psi
R.: 205kpa 2.1kg/cm² 30psi
Weight
Max load capacity: 350kg(770lb)
Net weight: 620kg(1364lb)
Conveyance: 4/20' / 8/40' / 12/40HQ
