Specifications
Prod Model: |
DB150-CRFN |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Plastic: |
New Model Crf110 |
Certification: |
CE |
Displacement: |
126-250CC |
Starting System: |
Kick System |
Engine: |
4 Stroke |
Cylinder Quantity: |
1 |
Fuel: |
Gas / Diesel |
Condition: |
New |
Tank Capacity: |
4L |
Seat High: |
800mm |

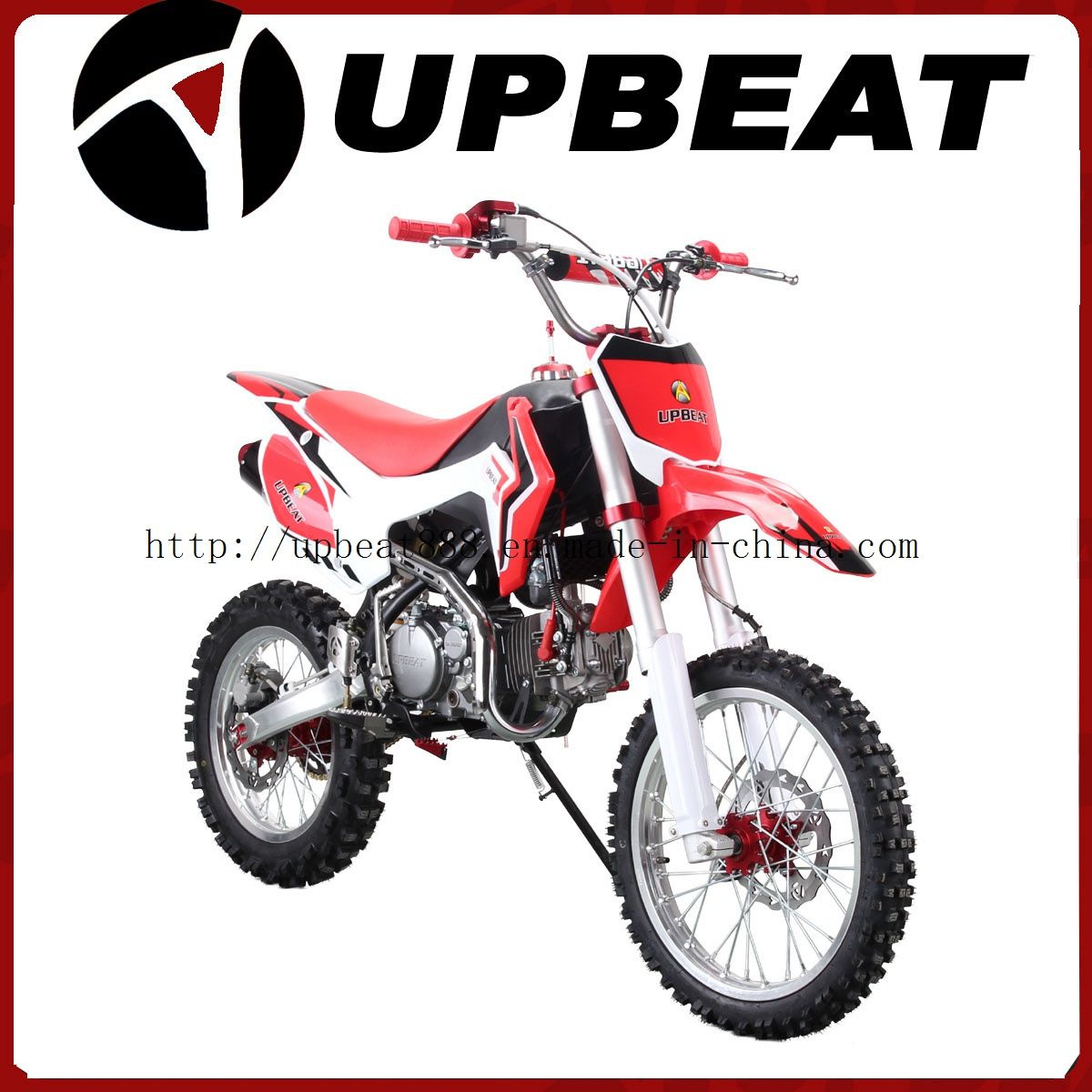

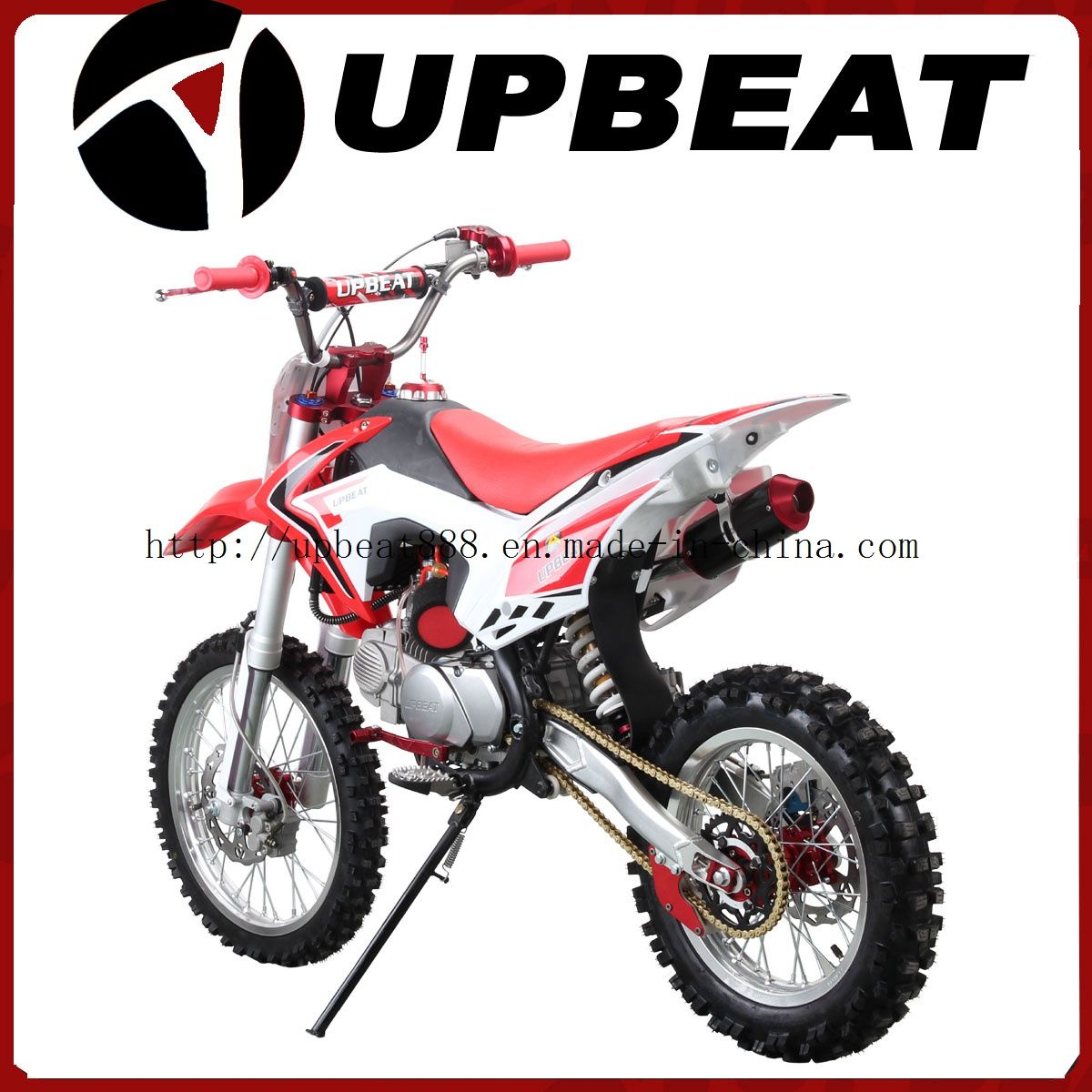

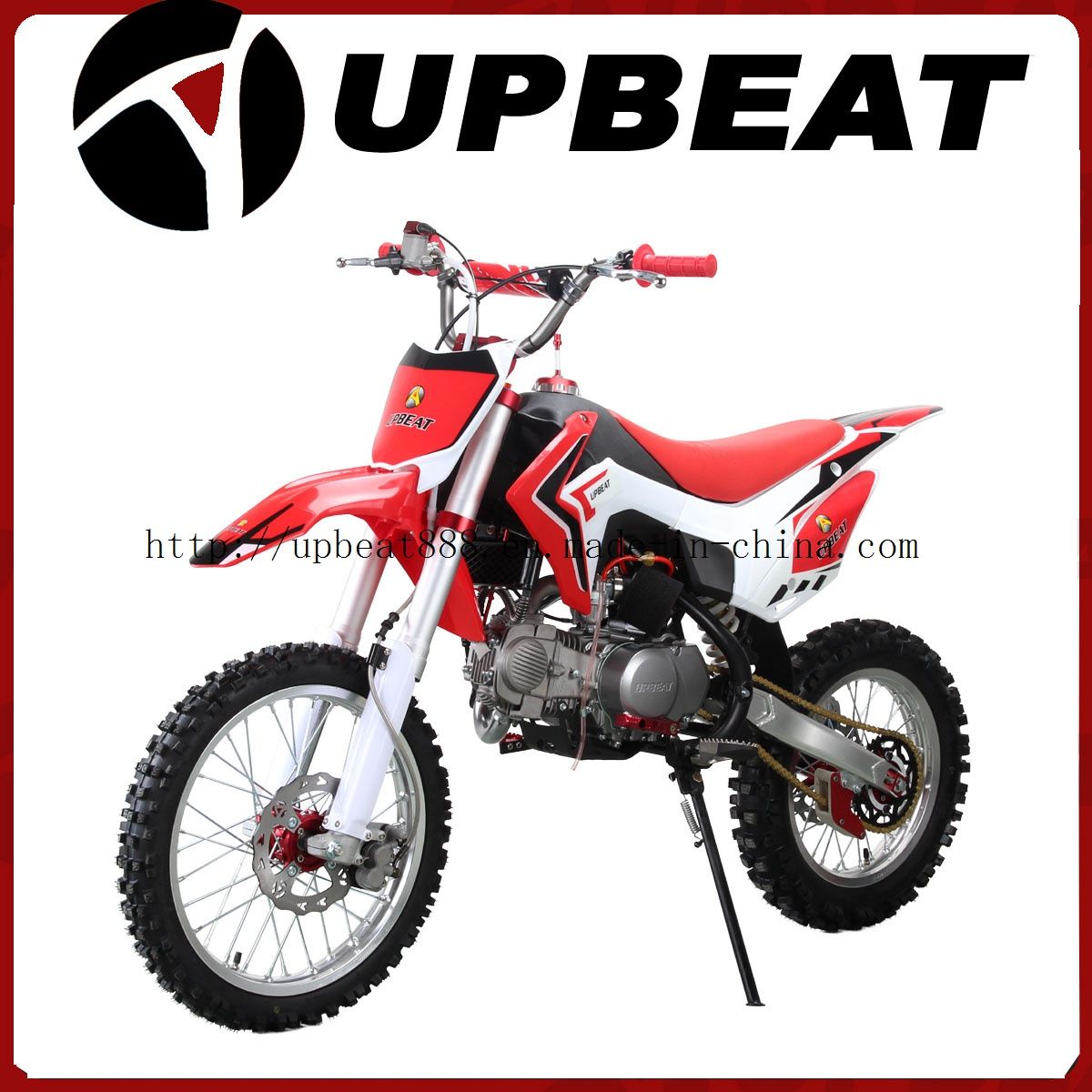

Product Description
Engine:150cc oil cooled,single cylinder,4 stroke,kick start
Bore X Stroke:60X53 MM
Max Power:10KW/9500R/MIN
Max torquer:11.2N.M/7500R/MIN
Transmission:Manual clutch,4 speed 428# chain
Ignition mode:CDI
Frame:new design heavy duty chrome steel cradle frame
Swingarm:Aluminium swingarm
Oil cooler:high performance oil cooler
Triple clamps:CNC aluminium
Handlebr:protaper handlebar
Body Fairing:New model CRF110 style
Exhaust:CNC aluminium exhaust pipe
Front suspension:original adjustable front fork absorber
Rear suspension:DNM brand adjustable rear shock absorber
Brake system:Front and rear hydraulic disc brake
Max load:150KGS
Tank capacity:4L
Wheels:aluminium wheels,kenda tyre Front 17" rear 14"
Hub:CNC Aluminium hub
Bike size:1760X770X1200MM
Seat height:860MM
Wheel base:1180MM
Carton size:1500X380X760MM
Container loading quantity:
63PCS/20FT,135PCS/40FT,157PCS/40HQ
