Specifications
Prod Model: |
ESIII |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
43*43*68 Cm |
Weight: |
58 Kg |
Application: |
Leasing, Advertise, Personal Transportation |
Max Power: |
1600 W |
Wheels: |
2 |
Age: |
Adult |
Body Material: |
Alu+ Iron |
Wheel Material: |
Rubber |
Color: |
Black, Red, Green, White, Yellow |
Product Description

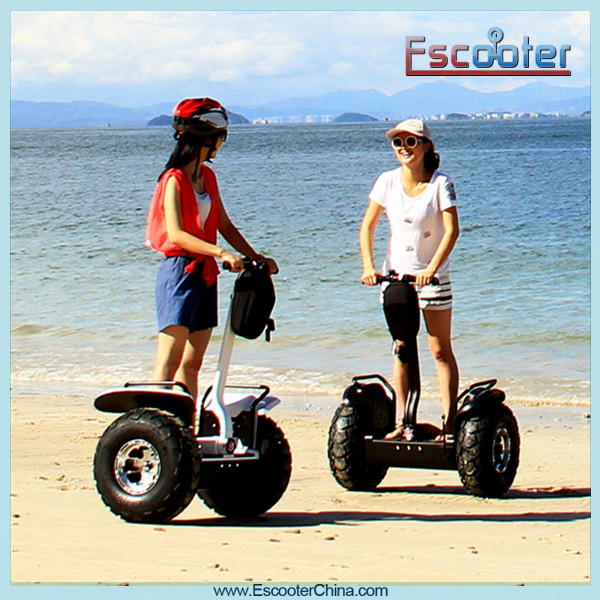

Two wheeled self balancing scooter with CE
Working principle of self balancing scooter
Based on the basic principle of "motion stability", that is to say, vehicle's automatic balance ability, Eswing can judge the position, status of vehicle by its built-in precise solid-state gyroscope and then drive its motors to balance the vehicle after receiving the commands from high-speed CPU inside.
Driving ability of electric pocket bike
With 2 strong motors, 1000W per motor (2 motors can be 2000W), FreeGo 2 wheel scooter can move at the speed up to 18 km/h. Through a smart transmission, the Eswing drives 2 PCS of 16-inch high strength vacuum tires which makes it moves stable and comfortable no matter it is indoor or outdoor
The source of power
The power source of Eswing comes from the 2 rechargeable powerful batteries (12V@14AH) which can work for 2.5 hours and moves 30--35 km for one time fully charge.
Feature of new model:
1. New steering mechanism, more stable and comfortable, faster response
2. Updated process motherboard, more safe and easy to be controlled
3. Waterproof
4. Advanced design for steer and handle, beauty and fashion
5. More exquisite and light steering mechanism, more flexible turning
6. New model pedal with 4 detecting switch. Driver will not fall down in driving.
7. Adjusting big power importing motor. Max power of single wheel can achieve 800W, easy to climb continuously 30 degree slope.
8. Siren alarm, reminding the statue of scooter
9. GPS tracking is optional
10. High quality wheel with smooth racing tire.
Performance Parameter of mobility scooter
Max speed: 11.5 mph / 18 km/h
Dimension: 43*43*68 cm
Max load: 240 lbs / 110 kg
Battery: Two power lead acid
Motor: Two import DC Motor, DC servo drives
Wheel: 12 in / 26 cm Black Aluminum Rim
Tire: 17 in / 43 cm vacuum smooth
Height of footplate: 10in/26cm
Net Weight: 43 kg
Max distance: 30 km depends on terrain and driving skill
Packing list (Standard kits/parts)
Handle: 1 PC
Key: 2 PCS
User manual: 1 PC
Driving handle: 1 PC
Extra fuse: 4 PCS
Pedal mat: 2 PCS
Fender: 2 PCS
Tire: 2 PCS
Battery charger: 1 PC
Packing of electric scooter
Inner: Carton, Outer: Plywood box
Gross weight: 58kg/carton
CTN demission: 47*47*74cm
Volume: 0.18cbm
135PCS/1container (20#)
Specification:
Net Weight | 43 kg |
Dimension | 43*43*68 cm |
Max cruise speed | 18km/h |
Max load | 110kg |
Max. Mileage (after full charging) | 30-35 km |
Max climb capability | 30 degree |
Min turning radius | 0 |
Charging time | 8 h-10 h |
Battery | PB,24V,28Ah |
Power | Two imported DC Motor,DC servo drives |
Voltage | 100 v-240 v |
Max Power | 1600 watts (2*800 w/pc) |
Lifetime of battery | 1-3 years |
Tire | 17 in / 43 cm vacuum smooth |
Wheel | 12 in / 26 cm Aluminum Rim |
Height of handle | 80-110 cm adjustable |
Height of footplate | 10in/26cm |
Specification of footplate | 11.5×25 in / 16×40 cm |
Max. Height above ground | 13 cm |
Standard Pressure | 250 kpa |
Certificates | CE & ROHS &FCC |
