Prod Model: |
BT-TW08 A6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Battery Capacity: |
520wh |
Product Size: |
600*390*1300 |
Charge Voltage: |
220V |
Product Description

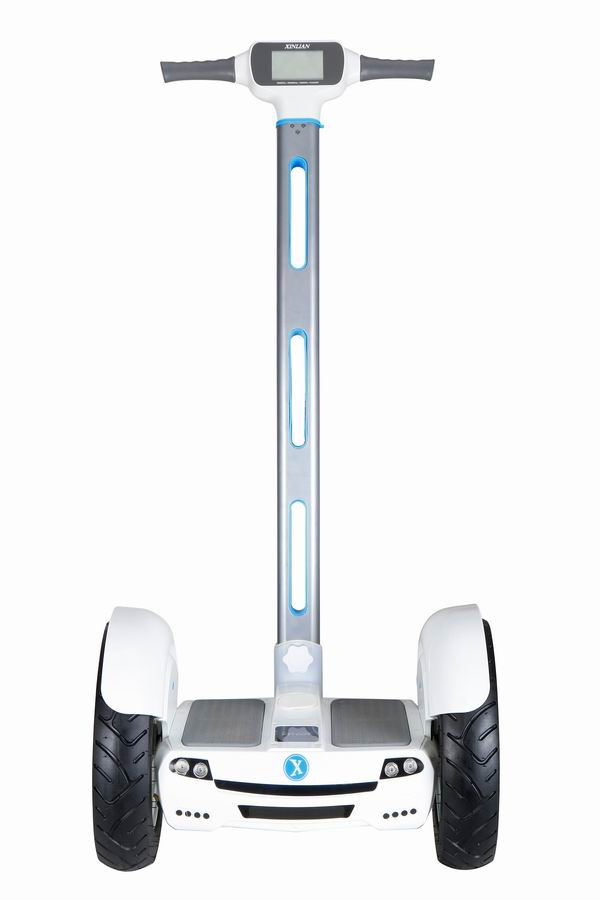

Model BT-TW08 A6 Max speed 18km/h Max range per charge 25-30km Battery Capacity 520Wh Battery Voltage 60V 8.8A Chrage time 240min Chrage Voltage 220V Power 350W X 2 Maximum gradient limit 15 - 30degrees Motor Brushless Converter Motor N.W 26KG G.W 33KG(31.1KG+1.9KG) Tyre size 15 inches Platform Height(mm) 225mm Chassis Height(mm) 100mm Product size(mm) 600X390X1300 Carton size(mm) (main frame) 620X530X500 Carton size(mm) (operation bar) 1125X105X165 Max carrying capacity 120KG Container loading 140Pcs/20'GP 280PcS/40'GP 360Pcs/40'HQ features 1. Color Customized colors are accepted 2. High efficiency, low consumption, safe and convenient. 3.Small size, light weight, portable 4. High quality and fidelity 5.Outstanding consulting and after-sales service 6. Waterproof design IP54 8.Smart and easy to operate 9.1 Year warranty
Yongkang Jojo Technology Co., Ltd. is locating in the world hardware city, which began to produce the special motor for the electric bicycle in the 1997. It's one of the earliest factories to produce the electric bicycle motor throughout the country, and also is the one of the factory which produces the more varieties of the electric bicycle motor in the recent.
Our factory produces the electric bicycle motor with the advantage of specific technology, while we accumulated the extended experience through the producing process. The new technology which we created has solved the brushless motor's noise problem and unsteady voice problem, and we got the country patented certificate.
The brushless motor produced by us not only has the advantage of performing efficiently and strong power, but also has no unsteady and noise. It makes the brushless motor the most perfect limited.
