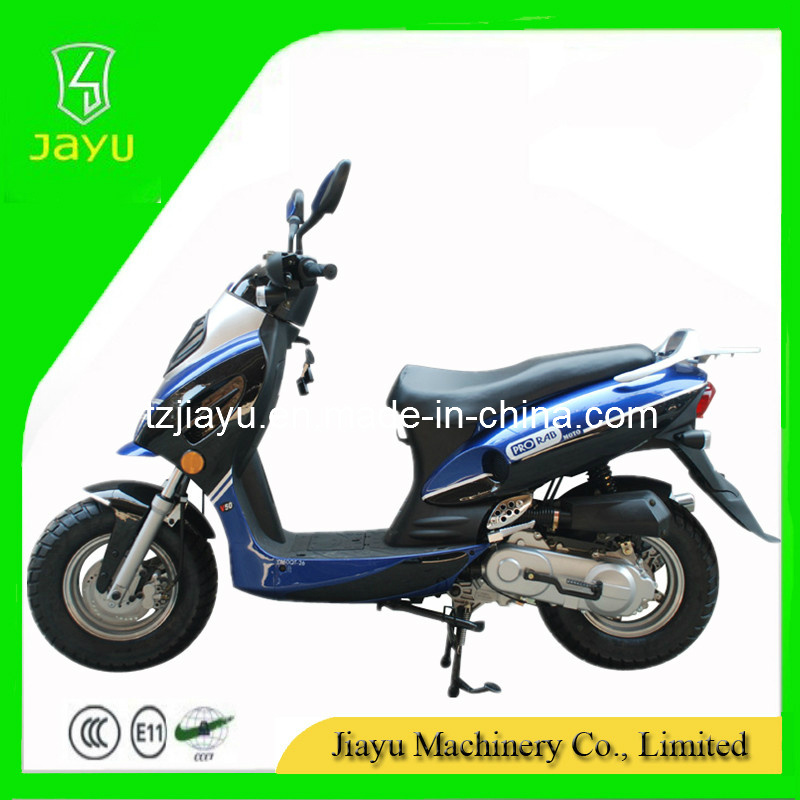

Topic Popular Product 150cc Scooter (PRINCE-150)
| Price: | US $ 485-525/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 84/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY150T-6 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Red, White, Yellow, Black |
| Engine: | 4 Stroke |
| Certification: | COC |
| Folded: | Unfolded |
| Max Speed: | 85km |
| Displacement: | 150cc |
| Maximum Loading Capacity: | 150kg |
| Fuel Tank Capacity: | 5L |
Product Description
Topic popular product 150cc Scooter1. New stylish design/ design sticker in China
2. Powerful 4 stroke/ air cooled engine
3. Fully automatic CVT transmission for easy driving
4.12 inch aluminum wheels fit for big person
5. Big size scooter gives safety and comfort for high speed cruising
1, Selling points:
1, It can match multicolor and stickers
2, we can do 150C power, also do we can do 50CC and 125CC models.
3, Front and rear vacuum tire: Durable, fasten, balanced, and beautiful. The tire is wear-resisting and aiti-explosion.
4, Disc brake has high safety performance and has no noise
5, The motorcycle can install rear box and rear carrier
| Scooter body parameter | |
| MODEL | JY150T-6 (PRINCE-150) |
| Dimensions (mm): | 1860 x 695 x 1160 |
| Wheel base (mm): | 1285 |
| Ground clearance (mm): | 105 |
| Dry weight / Load capacity: (kg) | 101 / 150 |
| Max.speed (km/h) : | 80 / 85 |
| Economic fuel consuption (1/100km/L) : | 2.8 / 2.9 |
| Exhaust system : | Mute exhaust |
| Fr brake / Rr brake : | disc/drum |
| Fr tyre / Rr tyre : | 120/70-12 |
| Fuel tank capacity (L) : | 5 |
| Battery | 12V 7AH / 12V 9AH |
| Ignition | CDI |
| Front suspension : | Spring shock |
| Rear suspension : | Spring shock absorber |
| Scooter Engine parameter | |
| Engine mode: | 152QMI / 157QMJ |
| Engine type | 1-cylinder,air-cooled, 4-stroke |
| Displacement (cc) : | 124.6 / 149.6 |
| Cylinder Diameter / Pinston Stroke | 52.4 x 57.8 ; 57.4 x 57.8 |
| Transmission system : | Belt CVT |
| Compression ratio | 10.3:1 |
| Start system : | kick / electric |
| Standard power(km/r/min): | 5.2/7500 ; 6.4/6500 |
| Max. torque(n.m/r/min): | 7.3/6000 ; 8.3/7500 |
| Packing information | |
| G.W / N.W (KG)/Packing model | 98 / 113; |
| Packing model | Full export carton package |
| Packing size(mm) /20GP(CBU) | 1860 X 570 X 1180 / 26PCS |
| Packing size(mm) /40HQ(SKD) | 1700 X 570 X 870 / 84PCS |
