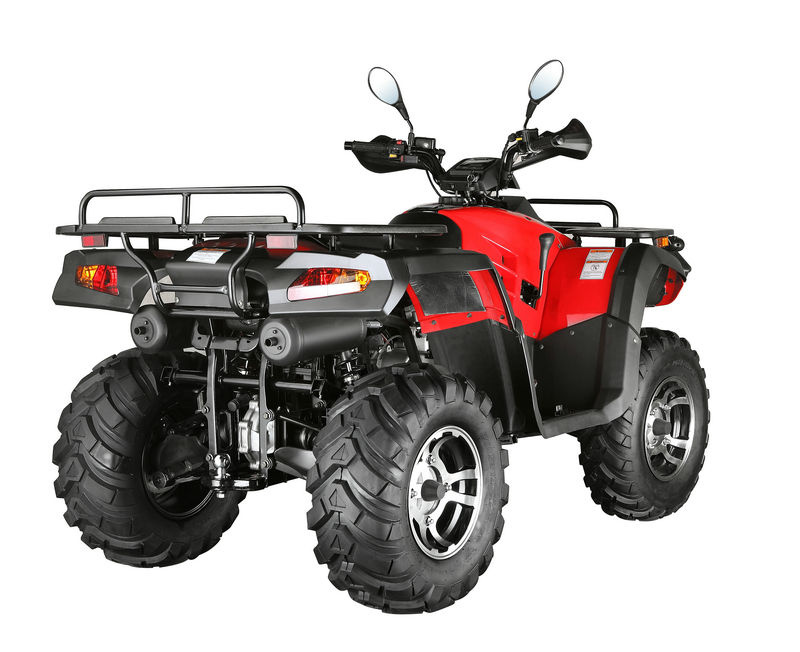

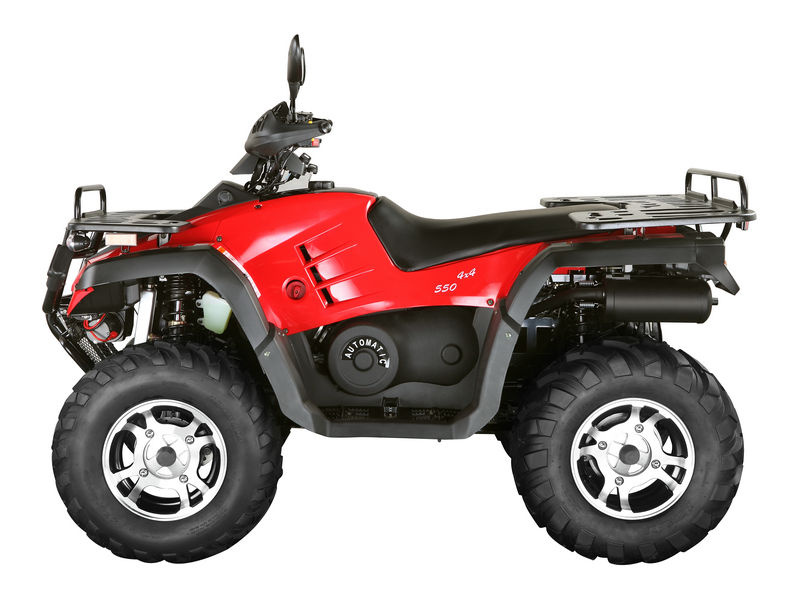

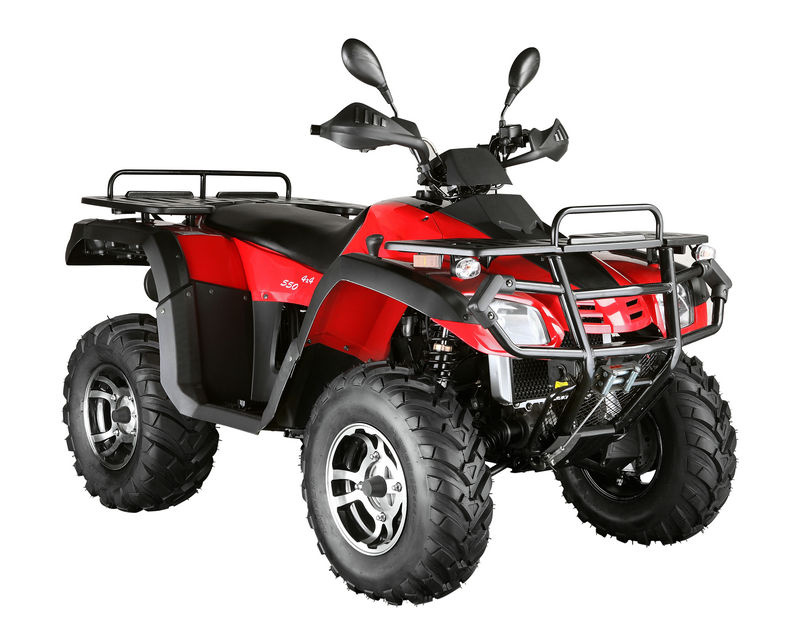

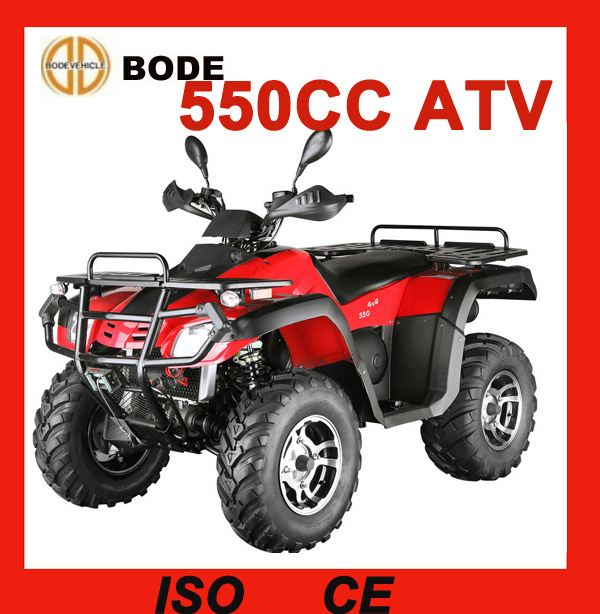

Top 550cc 4X4 Farming ATV (MC-395)
| Price: | US $ 3450-3480/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | MC-395 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: | 4 Stroke, V-Twin Cylinder, Sohc |
| Color: | Red/Yellow/White/Black/Grey |
| Warranty: | 6 Month |
| Ignition Type: | Cdi |
| Vehicle Dimensions: | 2016X1180X1237mm |
| Front Tire Spec: | 25X8-12 |
| Rear Tires Spec: | 25X10-12 |
| Fuel Tank Capacity: | 13.5L |
| Item Name: | 600cc ATV |
| Battery Spec: | 12V,12ah |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Displacement: | >400CC |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | >75 km/h |
| Power: | >1000W |
| Certification: | EEC |
| Condition: | New |
| Brand: | Bode |
Product Description
Top 550cc 4x4 farming atv(MC-395)ENGINE TYPE 4 Stroke, V-Twin Cylinder, SOHC, EFI
ENGINE COOLING Liquid-Cooled
MAX. POWER(KW/rpm) 26.5KW/7000rpm
STANDARD POWER 25KW/6500rpm
MAX. TORQUE(N. M/rpm) 45N. M/5500rpm
MAX. SPEED ≥ 90Km/h
BORE STROKE 72.5mm x 66.8mm
DISPLACEMENT 552ml
COMPRESSION RATIO 10.3: 1
FUEL SUPPLY SYSTEM ECU
LUBRICATION Separated & Pressure
AIR FILTER TYPE Dry Air-Cleaner Net
SPARK PLUG DR8EA
STARTING Electric Start & Pull Start
STARTING PROCEDURE Turn lgnition
GEARSHIFT Manual
TRANSMISSION CVT (H/L/N/R)
BRAKE FRONT Disc Brake
BRAKE REAR Disc Brake
BRAKE DISTANCE 7m/30km/h
FRONT SUSPENSION Macphersan Independent
REAR SUSPENSION Double Wishbone
SHOCK ABSORBER(F/R) Spring and Damp Shock Absorbor
BATTERY 12V/18AH
ENGINE OIL 1.5L
TRANSMISSION OIL 0.8L
REAR OIL 0.3L
FUEL 93# Unleaded Gasoline
FUEL CAPACITY 12L
TURNING RADIUS 3280mm
MAX. LOAD(kgs) 204kg
FRONT TIRE 25x8-12
REAR TIRE 25x10-12
OVERALL 2016x1180x1237mm
PACKING SIZE 2310x1320x870mm
WHEELBASE(mm) 1271mm
