Home Wuxi Sinyo Wing Motorcycle Co., Ltd. Tms Mini 50cc Moped

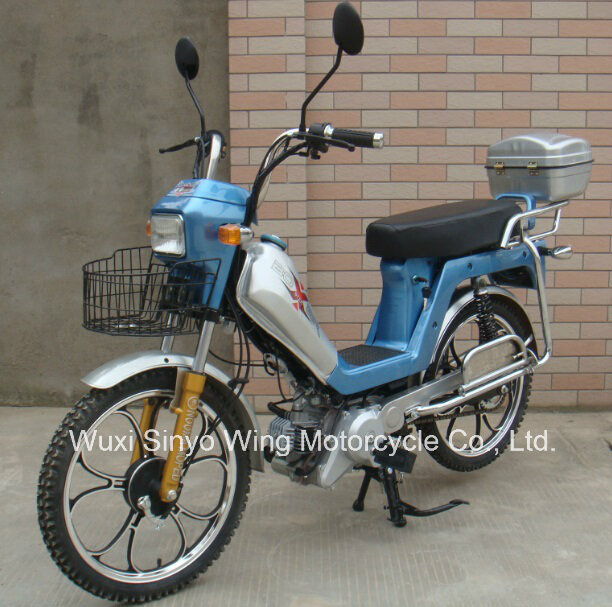

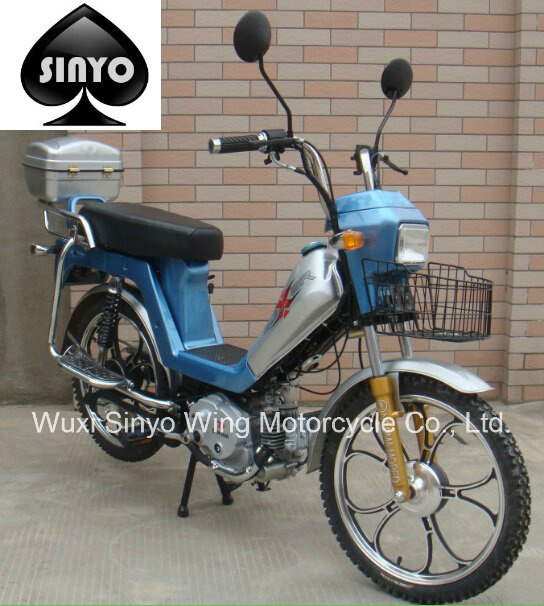

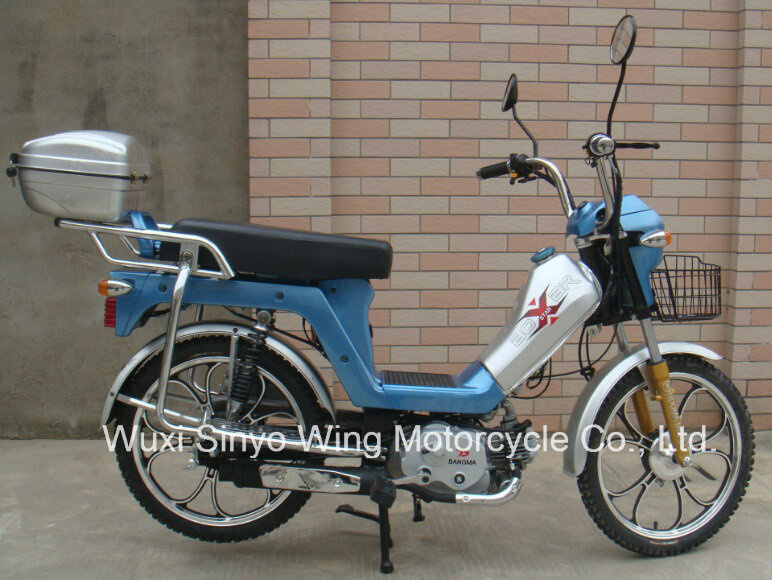

Tms Mini 50cc Moped
| Price: | US $ 295-310/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 144/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | SK35-B4(TMS) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Brand: | Lifan/Zongshen/Yinxiang |
| Loading: | 42 Units/20ft 144units/40hq |
| Brand Name: | Sinyo Wind/ OEM |
| Type: | Moped |
| Displacement: | ≤50CC |
| Engine Type: | 4-Stroke |
| Fuel: | Gas / Diesel |
| Certification: | COC |
| Condition: | New |
| Braking Mode: | Front & Rear Drum Brake |
Product Description
| Displacement | 49.5 CC |
| Engine | Single Cylinder, 4 Stroke |
| Bore & Stroke | 44*37.4 |
| Cooling System | Air Cooled |
| Compression Ratio | 8.0:1 |
| Fuel feed | 90# |
| Max Power( Kw/rpm) | 1.13/6250 |
| Max Torque(N.M/rpm) | 2.45/3500 |
| Max Speed | 50km/h |
| Ground clearance | 110mm |
| Fuel consumption | 1.5L/100KM |
| Drive Train | CVT |
| Ignition | CDI |
| Transmission | Belt |
| Fuel tank capacity | 5.0L |
| Starting System | Electric+kick start |
| Front Brakes | DRUM brake |
| Rear Brake | Drum brake |
| Front suspension | Hydraulic Suspension |
| Rear suspension | Hydraulic Suspension |
| Front tires | 2.25-16 |
| Rear tires | 2.25-16 |
| Wheel Base | 1170 mm |
| Seat Height | 760MM |
| Payload | 75kg |
| Net Weight | 65Kg |
| Gross Weight | 85 Kg |
| Packing type | Carton |
| Packing size | 1480*450*860 |
| 20' container | 40 units |
| 40' HQ container | 144units |
Packaging & Shipping
We supply carton packing with iron stand for CBU or SKD, engine package of CKD order use carton packing and be separated to the body part. Body parts of CKD are packaged with carton or with plywood box one unit by one package.
Our Service
1.We supply the whole set of spare parts of motorcycles, from Engines to Screws.
2.We guarantee 100% rate of qualified products in your factory.
3.Our engineers have more than 20 years experience in motorcycle production.
4.We guarantee 30 days of delivery time.
5.We guarantee that the vehicles for free service of 12 months or 12000 miles.

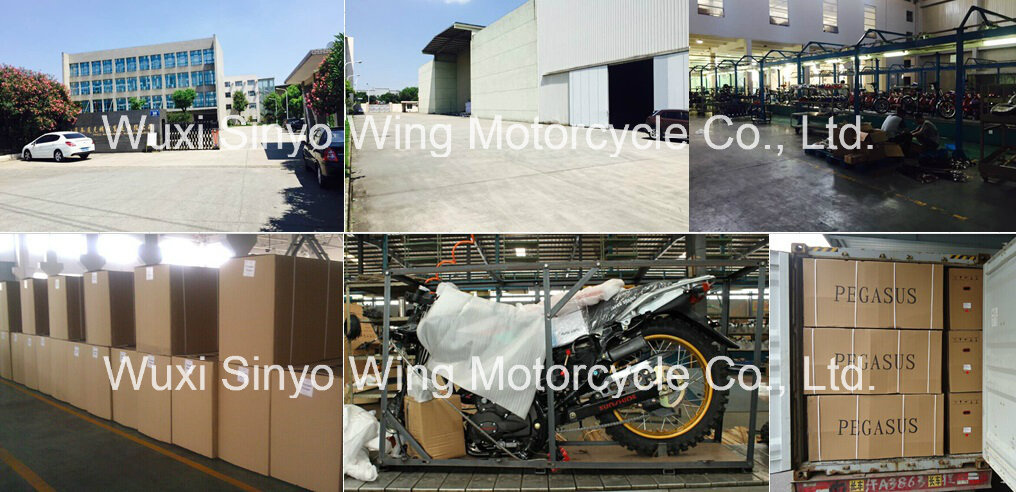

Company Information
Wuxi sinyo wing motorcycle CO.,LTD.is located in Wuxi, Jiangsu Province, specialized in motorcycles, scooters, tricycles,E-scooters and CKD products. Our company has professional facilities, technologies and inspectors who have been working in this field for long years and could share the correct advice with clients!
