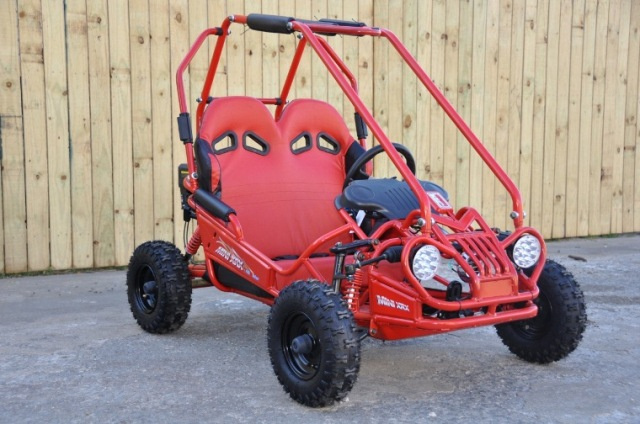

TBM Mini 90 Go Kart

Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Start-up:	Manual Start-up
Transmission:	Chain
Certification:	EPA
Displacement:	163CC

Product Description

Engine Information
EPA certificated
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 163CC
Max HP: 5.5h. P/3600rpm
Max torque: 8 lb ft/3600rpm
Bore x stroke: 2.6 x 1.8 inches
Max speed: 12.4mph
Climbing ability: 12 degree
Ignition: C. D. I
Starting system: Pull Start
Battery: No / for XRX yes
Carburetor brand: JF (RX)
Engine oil: SAE 15W-40

General Information
Clutch: Automatic CTV
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension, F / R: Dual A-arm / Independent swingarm
Brakes, F / R: No / Disc
Tires, F / R: 13x3.5-6 /13x5-6
Fuel capacity: 1.2 gal
Weight, G. W. / N. W.: 209 / 176 lbs
Max load: 400 lbs

Dimension Information
Wheelbase: 41.7 inches
OA L x W x H: 58.5x36x43 inches
Height to seat: 7.5 inches
Min ground clearance: 3.5 inches
Shipping information: 115 PCS/40HQ
