Home Ningbo A-ok Trading Co., Ltd. Taiwan Motor Electric Mobility Scooter with Pg/Curtis Controller (MS-007)

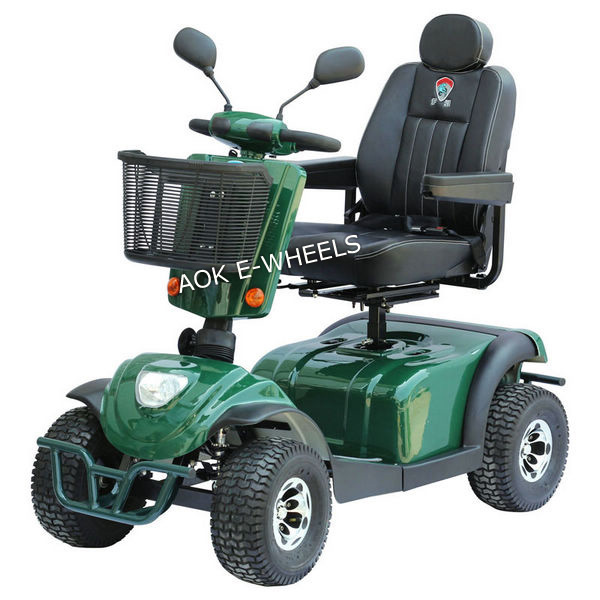

Taiwan Motor Electric Mobility Scooter with Pg/Curtis Controller (MS-007)
| Price: | US $ 1339-1472/Piece |
|---|---|
| Trade Terms: | CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Specifications
| Prod Model: | MS-007 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Ms-007 |
| Battery: | 12V 75ah X 2 Lead Acid Battery |
| Controller: | Pg/Curtis |
| Charger: | AC100-240V50/60Hz 6A |
| Charge Time: | 8~10h Recommended |
| Front Tyres: | 15"*6.50-6 " |
| Rear Tyres: | 15"*6.50-6 " |
| Gross Weight: | 155kg/341.72lbs |
| Net Weight: | 141kg/310.85lbs(with 2 Batteries) |
| Dimensions: | 1550 X 740 X 1410mm |
Product Description
1300W 24V Taiwan Motor Electric Mobility Scooter with PG/Curtis ControllerModel:MS-007
Certificate:CE/ISO
Motor:24V 1300W (Made in Taiwan)
Battery:12V75Ah x 2 lead acid battery
Controller:PG/Curtis
Charger:AC100-240V50/60HZ 6A
Net weight:141kg/310.85lbs(with 2 batteries)
Gross weight:155kg/341.72lbs
Specification
| Specification Details: | Motor | 24V 1300W (Made in Taiwan) |
| Battery | 12V 75Ah x 2 lead acid battery | |
| Controller | PG/Curtis | |
| Charger | AC100-240V50/60HZ 6A | |
| Charge time | 8~10h recommended | |
| Front Tyres | 15"*6.50-6 " | |
| Rear Tyres | 15"*6.50-6 " |
Performance & Main components
| Performance & Main components: | Max. forward speed | 6~13km/h(adjustable) |
| Max. backward speed | 2~6km/h(adjustable) | |
| Ground clearance | 110mm/4.33in. | |
| Turning radius | 1.7m/66.93in. | |
| Braking distance | 2m/78.74in. | |
| Climbing capability | 16° |
Packaging&Delivery
| Packaging Details: | Weight capacity | 220Kg/484lbs |
| Gross weight | 155kg/341.72lbs | |
| Net weight | 141kg/310.85lbs(with 2 batteries) | |
| Battery weight | 23.5kg/51.8lbs x 2 | |
| Dimensions | 1550 x 740 x 1410mm | |
| 61.02 x 30.20x 55.51in | ||
| Delivery Details: | 40 days | |
Business Terms
1. The price above are based on FOB Ningbo(Zhejiang Province,China).
2:Lead time:15 working days for samples, 20~25 days for bulk.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
Business Principle
Credibility and Honesty is our only business principle! We look forward to establishing partnership with you in the near future. Contact us now.
