Specifications
Prod Model: |
MS-003 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Controller: |
Pg/Curtis |
Charger: |
24V5a or 6A Battery Charger |
Ground Clearance: |
80mm/3.15in. |
Turning Radius: |
1.9m/74.8066.92in. |
Braking Distance: |
1.6m/63in. |
Climbing Capability: |
15 Degrees |
Front Tyres: |
12"*4.00-4 |
Rear Tyres: |
12"*4.00-4 |
Wheel Base: |
915mm/26.02" |
Wheel Track: |
550mm/21.65" |
Product Description

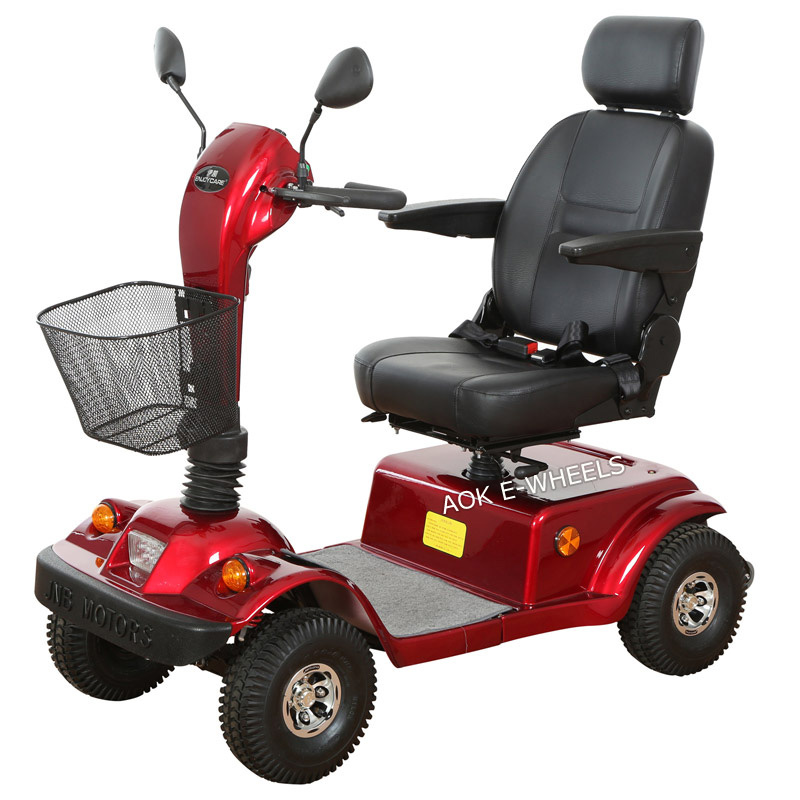

600W/800W 4 Wheel Taiwan Motor Electric Mobility Scooter with PG/Curtis Controller
Model:MS-003
Certificate:CE/ISO
Motor:24V 600W/800W (Made in Taiwan)
Battery:12V(40Ah)55Ah x 2 lead acid battery
Controller:PG/Curtis
Charger:AC100-240V50/60HZ 5A or 6A
Net weight:105kg/231.5lbs(with 2 batteries)
Gross weight:170kg/374lbs
Specification Details: | Motor | 24V 600W/800W (Made in Taiwan) |
Battery | 12V 40Ah(55Ah) x 2 lead acid battery |
Controller | PG/Curtis |
Charger | 24V5A or 6A battery charger |
Charge time | 6-8h recommended |
Front Tyres | 12"*4.00-4 |
Rear Tyres | 12"*4.00-4 |
Wheel base | 915mm/26.02" |
Wheel track | 550mm/21.65" |
Maual brake | Disc brake |
Performance & Main components
Performance & Main components: | Max. forward speed | 12.6km/h(adjustable) |
Max. backward speed | 2.8km/h(adjustable) |
Ground clearance | 80mm/3.15in. |
Turning radius | 1.9m/74.8066.92in. |
Braking distance | 1.6m/63in. |
Climbing capability | 15° |
Packaging&Delivery
Packaging Details: | Weight capacity | 170kg/374lbs |
Net weight | 105kg/231.5lbs(with 2 batteries) |
Battery weight | 13.8kg/30.43lbs x 2 |
Dimensions | 1450 x 660 x 1250mm |
59.18 x 25.98 x 49.21in. |
Delivery Details: | 40 days |
Business Terms
1. The price above are based on FOB Ningbo(Zhejiang Province,China).
2:Lead time:15 working days for samples, 20~25 days for bulk.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
Business Principle
Credibility and Honesty is our only business principle! We look forward to establishing partnership with you in the near future. Contact us now.
Please feel free to tell me if you have any questions. Thanks for your visit!
