| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Engine Type: | 110cc, 4 Stroke, Air-Cooled, Semi-Automatic Clutc |
| Maximum Speed: | 60km/H |
| Transmission: | 4 Speeds, N1234 All up Gear |
| Carburetor: | Pz22 |
| Frame: | Single-Beam Frame |
| Swing Arm: | Steel Tri-Angle Rear Swing Arm |
| Certification: | CE |
| Displacement: | 51-125CC |
| Starting System: | Kick System |
| Engine: | 4 Stroke |
| Cylinder Quantity: | 1 |
| Fuel: | Gas / Diesel |
| Condition: | New |
Product Description

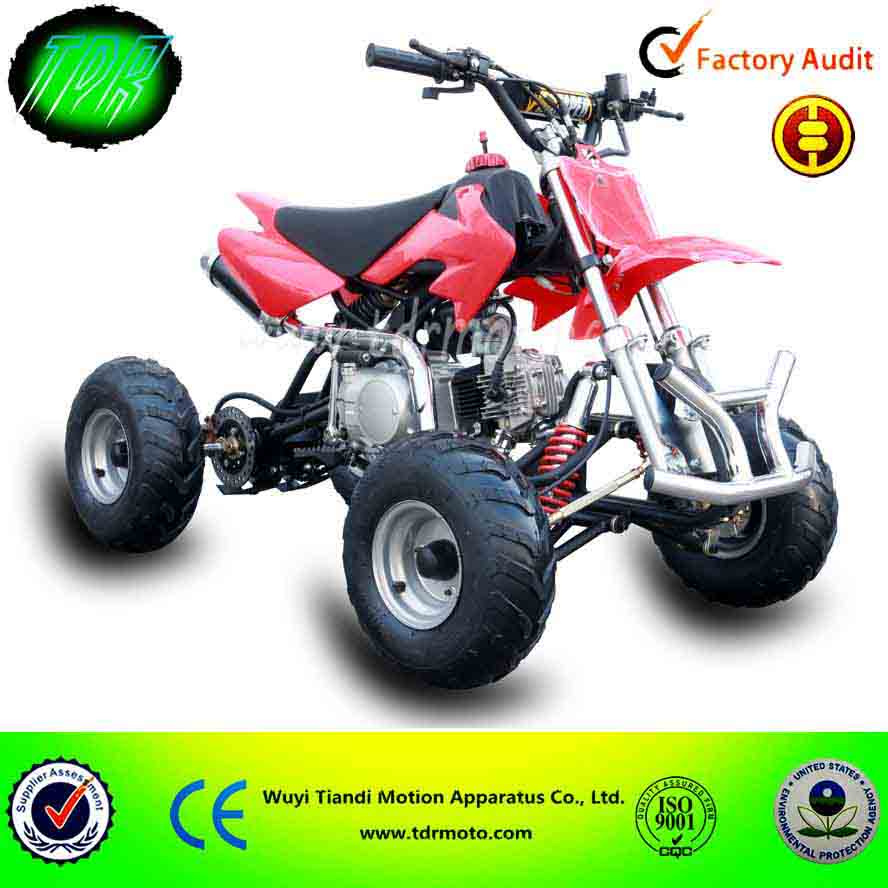

Conversion dirt bike, ATVBuying 1 set, you can own dirt bike, ATV and 3 wheels off road bike(2 front wheels + 1 rear wheel or 1 front wheel + 2 rear wheels).
| Engine | |
| Engine type | 110cc, 4 stroke, air-cooled, semi-automatic clutch |
| Maximum Speed | 60km/h |
| Transmission | 4 speeds, N1234 all up gear |
| Starter System | Kick Start |
| Carburetor | PZ22 |
| Chassis (pit bike) | |
| Frame | Single-beam frame |
| Swing arm | Steel tri-angle rear swing arm |
| Suspension system | Front Suspension: normal 525mm |
| Rear Suspension: 240mm, 1000LBS | |
| Brake system | Front Brake: Hydraulic disc brake system |
| Rear brake: drum brake | |
| Rim size | Front 1.40x10 rear 1.40x10 |
| Tire size | Guangli knobby front 2.50- 10, rear 2.50-10 |
| Chassis (adding conversional parts) | |
| Frame | Single-beam frame |
| Swing arm | Steel tri-angle rear swing arm |
| Suspension system | Front Suspension: normal 525mm |
| Rear Suspension: 240mm, 1000LBS | |
| Brake system | Front Brake: drum brake |
| Rear brake: Hydraulic disc brake system | |
| Tire size | Front 145/70-6 rear 145/70-6 |
| Dimensions | |
| Seat Height | 660mm |
| Wheel Base | 860mm |
| N.W/G.W | 76KG/86KG |
| Package 1 (pit bike) | 1140 x 360 x 600mm, Iron-frame, Carton box |
| Package 2 (conversional parts) | 820 x 720 x 320mm, Carton box |
| Container | |
| Qty/20Fcl | 60 sets |
| Qty/40HQ | 138 sets |
Wuyi Tiandi Motion Apparatus Co., Ltd. (TDR MOTO) is a normal scale factory but extremely good at design as well as manufacture, located in Jinhua City, Zhejiang Province of China, where is the production base of dirt bikes as well as parts.
We are the first company which started with mini dirt bikes and parts 5 years ago in Jinhua Area. And we have 5 professional designers that particularly in charge of the new products projects. The newest model of the world SWAP-n was made out by our stuff at the end of year 2007, which can be 18 flips assembled by changing the wheels, the tires and so on.
Good quality & price, prompt treat & service as well as steady friendship & cooperation become our business principle. Welcome to set up relationship with TDR MOTO.
We are the first company which started with mini dirt bikes and parts 5 years ago in Jinhua Area. And we have 5 professional designers that particularly in charge of the new products projects. The newest model of the world SWAP-n was made out by our stuff at the end of year 2007, which can be 18 flips assembled by changing the wheels, the tires and so on.
Good quality & price, prompt treat & service as well as steady friendship & cooperation become our business principle. Welcome to set up relationship with TDR MOTO.
