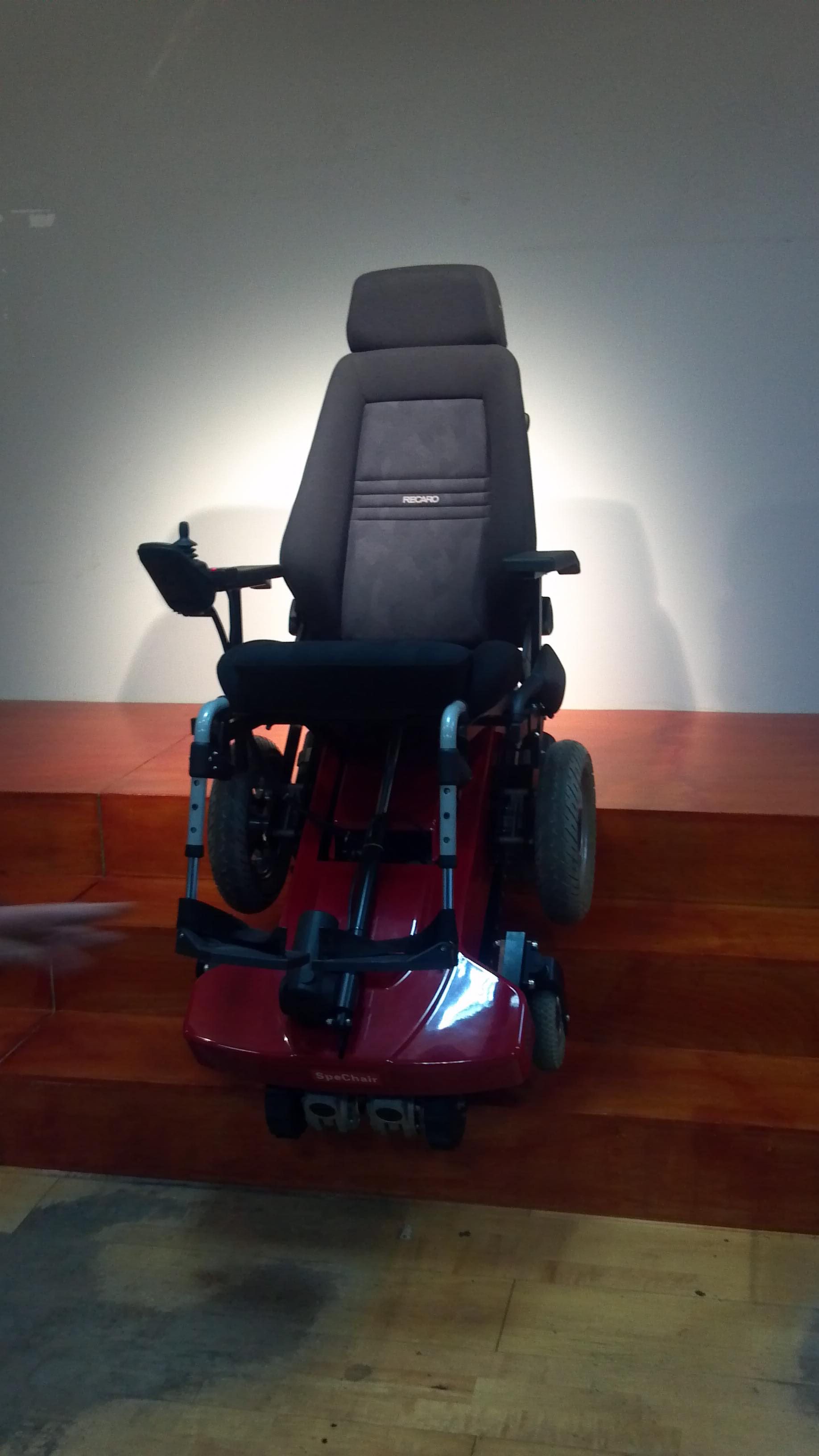

Stair Climber for Handicapped
| Price: | US $ 7000/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | ILT61 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load: | 110kg |
| Uphill Degree: | 8 Degree |
| Step Height Requirement: | 15-20cm |
| Step Width Requirement: | 25-30cm |
| Climbing Capability: | 8?? |
| Load Capacity: | 100-200kg |
| Accessories: | Seat Belt |
| Folded: | Unfolded |
| Voltage: | 24V |
Product Description
ISUZU STAIR CLIMBER (LT-61)1.BASIC TECHNICAL DATA
| ITEM | DESCRIPTION | |||
| UNIT | CHAIR | CLIMBING DEVICE | ||
| MAX SPEED | km/h | ≤4.5~6.0 | ||
| BRAKE DISTANCE | m | ≤1.5 | ||
| HILL HOLD | Degree | 8° | ||
| STATIC STABLE | VERTICAL | Degree | 20° | |
| HORIZTONAL | Degree | 15° | ||
| DYMATIC STABLE | Uphill | Degree | 8° | |
| Downhill | Degree | 5° | ||
| Turning | m | 3.0~5.0 | ||
| LOAD CAPACITY | kg | ≤110 | ||
| CLIMBING SPEED | step/m | ≤16 | ||
| TOTAL UP/DOWN STEP QUANTITY AFTER FULLY CHARGED | Step | ≥300 | ||
| Max Step inclination | degree | ≤35 | ||
| STEP HEIGHT REQUIREMENT | cm | 15~20 | ||
| STEP WIDTH REQUIREMENT | cm | 25~30 | ||
| RIDGE PASSING HEIGHT | mm | ≤50 | ≤100 | |
| DITCH PASSING WIDTH | mm | 100 | ≤300 | |
| DITCH PASSING DEPTH | mm | ≤100 | ||
| CLIMBING ABILITY | degree | ≤8° | ||
| Min RADIUS OF GYRATION | m | ~0.9 | ||
| Max TRAVEL DISTANCE AFTER FULLY CHARGED | km | ≤20 | ||
| OVERALL DIMENSION | mm | L 1120×W 700×H1240 | ||
| AXLE DISTANCE | mm | 636 | 833 | |
| WHEEL DISTANCE | mm | 625 | 310 | |
| FRONT WHEEL DIAMETER | mm | 500(20×3.0) | 132 | |
| UNIVERSAL WHEEL DIAMETER | mm | 190 | ||
| TRACK LENGTH ON GROUND | mm | 833 | ||
| DISTANCE BETWEEN SEAT AND GROUND | mm | 520 | ||
| POWER CONSUMPTION,kw·h/100km | PROHIBIT TO EXCEED 15% OF RATED CAPACITY | |||
| WORK TEMPERATURE | -25ºC-50ºC | |||
2. MAIN CONFIGURATION SHEET
| SR | SYSTEM | DESCIPRTION | MODEL | REMARKS |
| 1 | MECHANICL SYSTEM | Track reducer gear | RS50 | Italy |
| 2 | Big aluminum Hub | 20×3.0 | China | |
| 3 | Small aluminum Hub | 8×2 | China | |
| 4 | Rubber track | T40 Z52 | China | |
| 5 | Rubber tire | 20×3.0 | China | |
| 6 | Rubber wheel | 200×50 | China | |
| 7 | Seat | LT1303 | China | |
| 9 | Rod(front wheel) | RD45-A | China | |
| 10 | Rod(rear whell) | RD45-A | China | |
| 11 | Rod (seat) | RD45-A | China | |
| 12 | Housing | ISUZU | ||
| 13 | ELECTRIC SYSTEM | Track motor | MP80S/2 6920696X | Italy |
| 14 | Wheel motor | 350W 25:1 | Taiwan | |
| 15 | Accumulator | 24V 60Ah | China | |
| 16 | Rod controller | ISUZU | ||
| 17 | Mother board | ISUZU | ||
| 18 | Assistant controller | ISUZU | ||
| 19 | Infrared distance sensor | GP2Y0A21YK | Japan | |
| 20 | OTHER ASSY | Seat rack Assy | ISUZU | |
| 21 | Climber rack Assy | ISUZU | ||
| 22 | Track Chassis Assy | ISUZU | ||
| 23 | Driving track wheel | ISUZU | ||
| 24 | Passive track wheel | ISUZU |
