Specifications
Prod Model: |
CQST551 |
Markets: |
North America,Western Europe |
Cylinders: |
4 |
Age: |
Adult |
Engine: |
4 Stroke |
Displacement: |
300CC |
Product Description

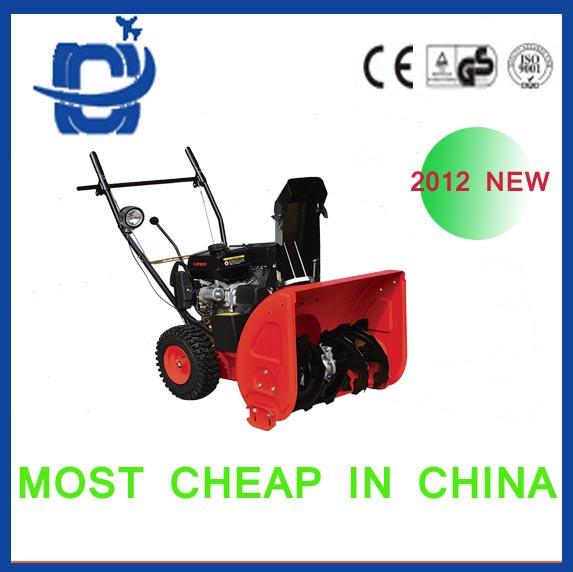

13HP Snow Thrower/Snow Blower/Snow Machine with CE/EPA
1. Gasoline snow blower
2. Max. Throwing distance: 10-15m
3. Clearing width: 710mm
4. Clearing depth: 560mm
5. Engine specialized for snow blower: G390, 375CC.
MODEL
SPECIFICATION
JH-SN08-13
Certificates: CE, EPA, CARB, EURO-2
Power supplier: 13HP(9.75Kw)
--Displacement: 375CC
--Engine type: G390, 4 stroke, OHV, air-forced cooling, single-cylinder, gasoline
--Fuel Capacity: 5.5 L
--Oil tank capacity: 1.1L
--Operational Capacity per tankful (approx. ): 3.5 hrs
--Max working load: 2200lbs. /minute. (theoretical)
Max. Throwing distance: 10-15m (theoretical)
Max. Working width: 28" (71cm)
Max. Working thickness: 22" (56cm)
Chute rotating angle: 190 Degree
Type of transmission: Friction disc
Stage gears: 5 Forward, and 2 Reverse
Type of wheels: 15X5.5-6 inch tyre/ caterpillar
Starting method: Recoil & Electrical starter
N. W/G. W: 108/120 kg
Packing Dimension: 115 x 76 x 78 (cm)
Conveyance: 30PCS/20' GP; 90PCS/40' GP
