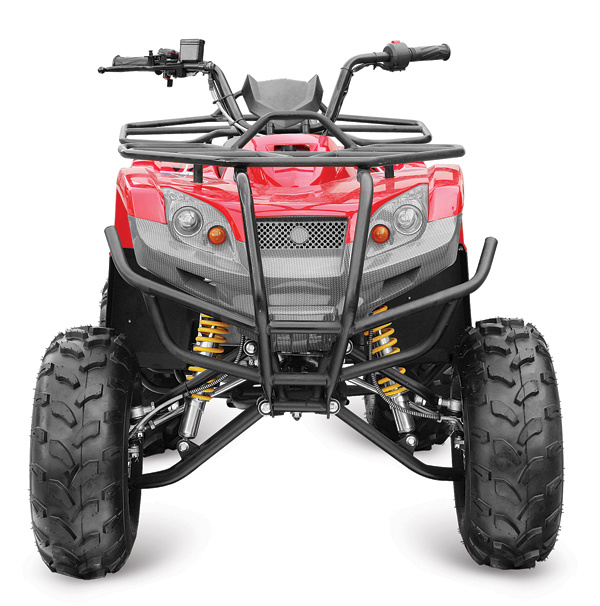

SKATV-150CC FT

Specifications

Product Description

Engine type: 1 Cylinder, 4 stroke AUTO, GY 6 engine
Displacement: 150CC
Max power: 6.0kw/7500 rpm
Max torque: 8.3 Nm/6000 rpm\
Cooling: Air cooled
Lubrication: Pressure and splash
Ignition: CDI
Starting: Electic start
Final drive: Chain drive
Transmission: C. V. T automatic With inside reverse
Front suspension: Double A-arm
Rear suspension: Swing arm
Front brake: Dual sealed drums / right hand operation
Rear brake: Hydraulic disc/left hand operation
Parking: Front /rear wheel
Front tire: AT21*7-8
Rear tire: AT21*10-8
L*W*H: 1660*1090*1060mm
Seat height: 810mm
Wheel base: 1090mm
Turn radius: 3000mm
Ground clearance: 120mm
Dry weight: 150kgs
Max speed: 64 km/h
Tank capacity: 5.0L
Reserve amount: 0.9L
20ft: 18 PCS
40 HC: 63 PCS
Packing Size in CBU: 1490*840*800mm
FOB ningbo
