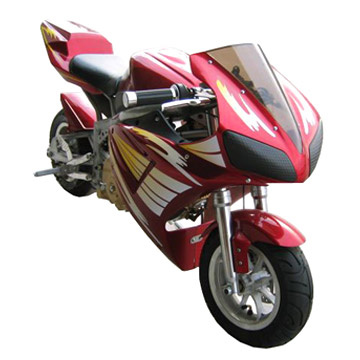

Home Zhejiang Shenying Machinery Manufacturer Co., Ltd. Single Cylinder, 49cc, 4-Stroke Pocket Bike (Sy-11)
| Prod Model: | SY-11 |
|---|
Product Description
1) Engine: Single cylinder, 49cc , 4-strokea) Power: 2.5KW/8500rpm/min
b) Bore/Stroke: 41.4*39mm
c) Torque (NM) =3Nm/6500r/min
d) Compression Ratio: 9.0:1
e) Charging Voltage (V): 14.8 +/- 0.2
f) Charging Current: <=3A
g) Rotation Speed: 1500rpm+/-150r/min
2) Ignition: CDI
3) Cooling System: Air cooled
4) Starter: Electric and Pull start
5) Battery: 12V/9Ah
6) Charge System: Automatic
7) Lighting System: Headlights 10W x 2
8) Tail Light/Brake Light 5W/8W
9) Turn Signal Lamps 3W x 4
10) Fuse: 10A
11) Brake System: Front and rear disc
12) Braking Distance: <13' at 15 mph
13) Drive System: Chain, Ratio 1:5
14) Clutch: Centrifigal
15) Tires: Front-9.0/6.5-8
16) Rear-13.0/5.0-8
17) Inflation-40PSI
18) Rims: Aluminum Alloy
19) Front & Rear Suspension
20) Frame Material: Steel
21) Fairings: Automotive ABS
22) Fuel System: High Octane Gasoline
23) Tank Capacity: 2.5L
24) Lubrication: Oil mist (spray) synthetic recommended
25) Turning Radius: 45 degrees
26) Slope (Climb) Angle: 20 degrees
27) Range: 60+ mi. (100km) average on full tank
28) Overall Length: 54" (136 cm)
29) Wheelbase: 38" (96.5 cm)
30) Handlebar Width: 22"
31) Ground Clearance: 3.25"
32) Load Capacity: 220 lbs (100 kgs)
33) Gross Weight: 100 lbs. (46 kgs)
34) Net Weight: 95 lbs. (43 kgs)
Packing:
Carton Size: 55-1/2" x 17.5 x 28"
141 x 44.5 x 71 cm
20 Container: 63 units
40 Container: 123 units
40 HQ Container: 147 units
