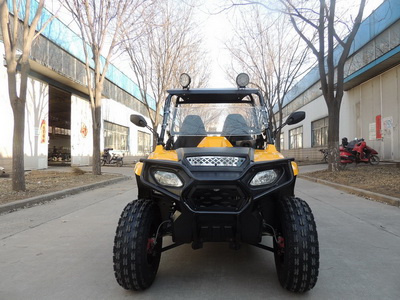

Shengwo 150 200 Chain Drive China Manufacture Youth Kids Disc Brake Quad UTV ATV
| Price: | US $ 1600/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 8/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | FX200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Age: | 12-18Years |
| Displacement: | 200CC |
| Maximum Speed: | <60 km/h |
| Transmission: | Chain |
| Start-up: | Electric |
| Usage: | Toy |
| Kind: | Vari-Speed |
| Certification: | EPA |
| Condition: | New |
Product Description
Certification EPA approvedEngine type 4-stroke,Single-Cylinder, Air/Oil-cooled
Displacement 175cc
Horse Power 7.6kw(7000r/min) 10.5HP
Valve Configuration OHV
Compression ratio 9.0:1
Fuel Delivery System Fuel Pump Carburetor
Choke System Automatic
Fuel capacity 9.5L (2.1 Gallon)
Driveline Type 2X4
Final Drive Chain-drive
Transmission Constantly Variable Transmission
Gear Selection Forward & Reverse Single Speed
Forward Lights Headlights High & Low Beam
Rear Lights Brake Lights & Left/Right Signal lights
Starting system Electric start
Ignition system C.D.I
Suspension Front Double A-arm optional
Suspension Rear Dual Shock Swing arm
Brakes Front Front Dual Hydraulic Disk
Brakes Rear Rear Single Axle Hydraulic Disk
Front Tread 1020mm ( 40.2 in)
Rear Tread 965mm ( 38.0in)
Front & Rear tire size 19x7-8 / 20x10-9
Loading information 8 units/20″; 18units/40″; 26units/40HQ
Manufacturers Defect Warranty 6 Months
Top speed 65km/h
Dry weight 245kg ( 540 lbs.)
Gross weight 320kgs(704lbs)
Wheelbase 1860mm (71.0in)
Vehicle dimension (L×W×H) 2450x1220x1397mm ( 96.5x 48.0x55.0 in)
Packing size 2290x1300x815mm (90.2x51.2x32.1in)
Ground clearance 152mm (6in)
Safety Driver & Passenger Seat belts/ Driver and Passenger safety net restraints.
