Specifications
Product Description
Optional Items: Rear box or Alarm system or Crash bar or windscreen etc:
Price quotation of optional items is available upon request.

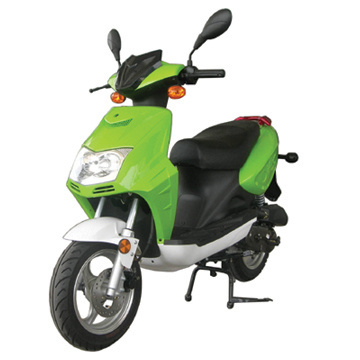

Item No.: ZX50QT-20
Product Description:
Dimension(LXWXH): 1830x690x1090mm Tire(Front/Rear): 90/90-12 44J//90/90-12 44J
Max speed: 40km/h Ignition: CDI
Engine type: ZX1P39QMB,4-stroke, Single-Cylinder, Forced Air-Cooled
Ground clearance(mm): 100mm
Efficient capacity: 50ml
Max power and rotate speed: 2.5kw/7000±350R/Min
Max torque and rotate speed: 3.6N. M/6000±300R/Min
Bore x Stroke: 39 x 41.5 mm
Compressing ratio: 10.5±0.1: 1
Gearshift mode: Stepless
Starting system: Electric/Kick
Brake system front/rear: Disc/Drum
Fuel tank: 4.5L ± 0.5L
Steering angel: 48
LOADING Q'TY: Packing:
26PCS/20" 56PCS/40"84PCS/40"HQ Gross weight: 124kg Net weight: 99kg
Color: Yellow; Red; Silve; Black; Blue Carton size: 1670x570x870(SKD)
