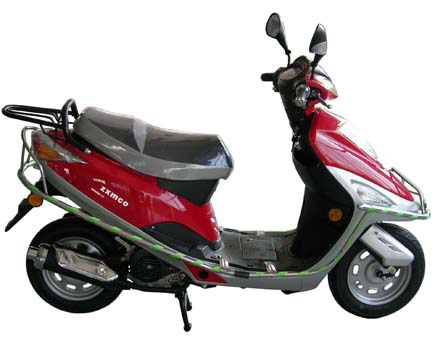

Scooter (ZX50QT-17C)

Specifications

Prod Model:	ZX50QT-17C

Product Description

Optional Items: Rear box or Alarm system or Crash bar or windscreen etc:
Price quotation of optional items is available upon request.
Item No.: ZX50QT-17C
Product Description:
Dimension(LXWXH): 1725x615x1025mm Tire(Front/Rear): 3.00-10/3.00-10
Max speed: 45km/h
Engine type: 4-stroke, Single-Cylinder, Forced Air-Cooled
Ground clearance(mm): 90
Efficient capacity: 49ml
Rated power and rotate speed: 1.8kw/7000± 300R/Min
Max torque and rotate speed: 2.8N. M/5500~6000R/Min
Compressing ratio: 10.5: 1
Gearshift mode: Stepless
Starting system: Electric/kick
Brake system front/rear: Drum/Drum
Fuel tank: 3.8L
Steering angel: 48
Ignition: CDI
LOADING Q'TY: (SKD) Packing:
28PCS/20"(CBU) 32PCS/20"(SKD)60PCS/40"(CBU) 105PCS/40"(SKD)HQ Gross weight: 96kg Net weight: 76kg
Carton size: Carton size: 700X500X1100mm(CBU)

Carton size: 1670X1460X865mm(SKD)
