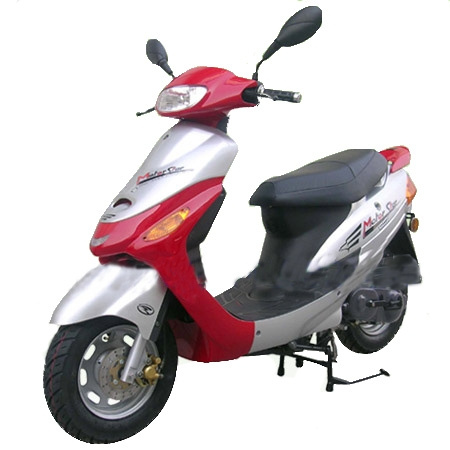

Home Zhejiang Hongzhou Motorcycle Co., Ltd. Scooter (LB50QT-16)
Specifications
| Prod Model: | LB50QT-16 |
|---|
Product Description
1. Dimensions: 1686*1094*652 (mm) 1. Engine type: 139QMB2. Wheelbase: 1200 (mm) 2. Displacement: 50 (ml)
3. Gross Weight: 82(kg) 3. Engine Style: Cylinder, Air-cooled, 4-stroke
4. Dry Weight: 79(kg) 4. Broe*stroke: 39*41.4(mm)
5. Max Load: 260 (kg) 5. Ignition: C. D. I
6. Max. Speed: 40(km/h) 6. Spark plug: A7RTC-1
7. Fuel tank capacity: 4(L) 7. Max power: 2.25(Kw/8000min-1)
8. Fuel type: #90 Benzine 8. Max torque: 3.0(N. M/6500min-1)
9. Tyre and rim: F.: 3.50-10/ R.: 3.50-1 9. Impression Ratio: 10.5: 1
10. Brake style: F. Disc /R. Drum 10. Transmission type: Belt
11. Absorber style: Independent hanging 11. Lubrication: Pressure Splash
12. Battery: 12V7AH 12. Starting type: Eletrick/kick start
13. Clutch: Wet type, automatism centrifugal
