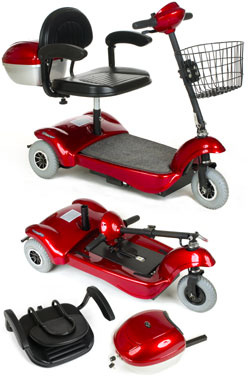

Scooter (JP30T)

Specifications

Prod Model:	JP30T

Product Description

Features:
1) Overall dimensions: 1067 x 483 x 940 mm
2) Weight without battery pack: 67 lbs
3) Turning radius: 0.838m
4) Forward max speed: 6.4km/h
5) Backward max speed: 3.2km/h
6) Max climbing grade: 12o or 20% grade
7) Range: Up to 18 miles with 17Ah batteries
8) Ground clearance: 45mm
9) Carrying capacity: 125kg
10) Standard seat: Foldable
11) Seat dimensions: 420(W) x 343(H) x 406D)mm
12) Seat material: Black vinyl
13) Drive system: Rear-wheel drive, sealed mini transaxle, 24V DC motor
14) Dual braking system: Electronic, regenerative, and electromechanical
15) Tires: Solid (need not charging)
16) Wheel hub: Aluminum alloy
17) Battery Type: 2 x 12V, deep-cycle, AGM or Gel-cell
18) Battery dimensions: 178 x 168 x 77mm
19) Battery weight: 12.5lbs (each)
20) Battery rated capacity: 17Ah
21) Battery charger: 2 Amp off-board battery charger
