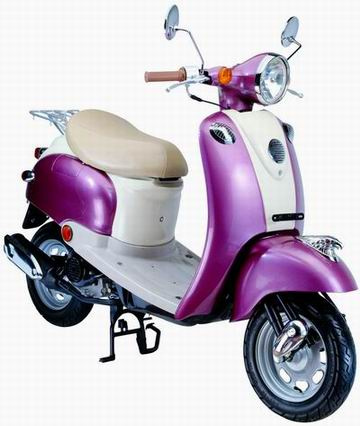

Scooter JL50QT-3B

Specifications

Prod Model:	JL50QT-3B

Product Description

Dry Mass 75kg
Wheel Base 1160mm
Exterior Size 1615*630*1048mm
Max Speed 50km/h
Max Load 100kg
Fuel Tank 5.30L
Braking Type F/R: drum
Engine Type 4 stroke, single, air-forced cool
Max Power 2.2kw/7500r/min
Starting Mode Electric/Kick
Maximum Torque 3.0N.m/6000r/min
Battery 12V7AH
Ignition Type CDI
Compression Ratio 10.5:1
Nominal Displacement 50ml
Fr Tyre/Air Pressure 3.00-10-4PR/200kpa
Rr Tyre/Air Pressure 3.00-10-4PR/225kpa
Economic Fuel Consumption 400g/kw.h
Idle Speed 1600r/min
Spark Plug AT7C
Lubricateing Oil Type 15W/40SF
Fuel Type RQ90
Package Size 1700*550*1080mm
Container Capacity 32/54
