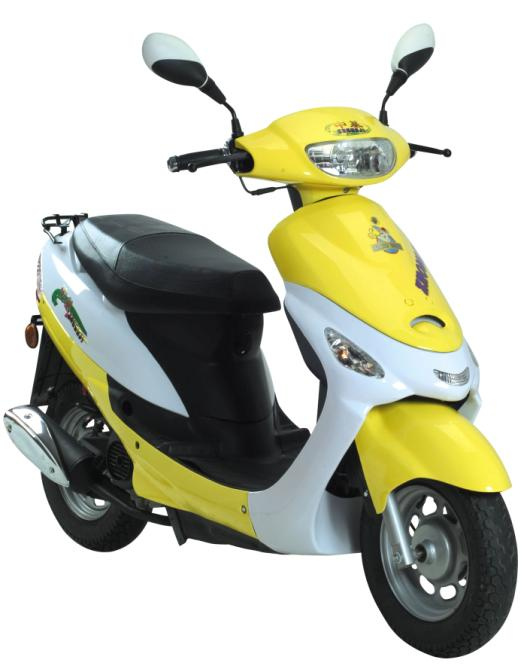

Scooter (BD50QT-6)

Specifications

Prod Model:	BD50QT-6

Product Description

Dimension: 1700*660*1023(L*W*H mm)
Wheel Base: 1195(mm)
Gross Weight: 94. 5(Kg)
Dry Weight: 75. 5(Kg)
Transmission Type: Strap
Tyre and Rim: F.: 3. 00-10 / R.: 3. 00-10
Brake Style: F.: Drum / R.: Drum
Absorber Style: F.: Independent Hanging
Displacement: 49. 0ml
Climbing Ability: ≥ 15
Max. Load: 75(Kg)
Packing Vol,: 1720*610*1043(L*W*H mm)
Container Capacity: 40'H: 56Unit 20': 18Unit
Engine Model: BD139QMB
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore*Stroke: 39*41. 5(mm*mm)
Ignition: C. D. I.
Lubrication: Pressure/Splash
Max. Power: 2. 6/9000(Kw/r/min)
Max. Torque: 3. 0/6000(N. m/r/min)
Impression: 7. 3: 1
Starting: Electric/Kick
Max. Speed: 50(Km/H)
Oil Consumption: ≤ 2. 2(L/100Km)
Oiltank Capacity: 5L
Clutch: Dry-type and Auto-centrifugal
