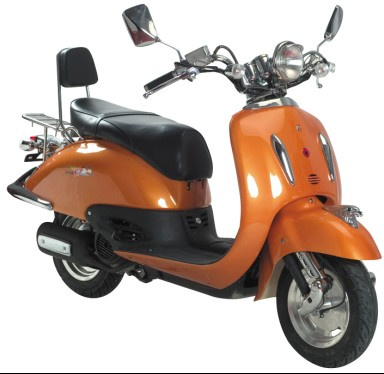

Scooter (BD125T-7)

Specifications

Prod Model:	BD125T-7

Product Description

Dimension: 1880*880*1068(L*W*H mm)
Wheel Base: 1265(mm)
Gross Weight: 117(Kg)
Dry Weight: 95(Kg)
Transmission Type: Strap
Tyre and Rim: F.: 3.50-10 / R.: 3.50-10
Brake Style: F.: Disc / R.: Drum
Absorber Style: F.: Independent Hanging
Displacement: 124.6ml
Climbing Ability: ≥ 15
Max. Load: 150(Kg)
Packing Vol,: 1900*570*1088(L*W*H mm)
Container Capacity: 40'H: 48Unit 20': 16Unit
Engine Model: BD152QMI
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore*Stroke: 52.4*57.8(mm*mm)
Ignition: C. D. I.
Lubrication: Pressure/Splash
Max. Power: 5.6/7500(Kw/r/min)
Max. Torque: 7.5/6000(N. M/r/min)
Impression: 9.2: 1
Starting: Electric/Kick
Max. Speed: 80(Km/H)
Oil Consumption: ≤ 2.8(L/100Km)
Oiltank Capacity: 5L
Clutch: Dry-type and Auto-centrifugal
