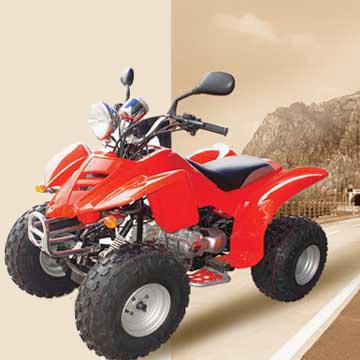

Home China Wangli Group Co., Ltd. Red Four-Stroke Shaft Drive ATV (Wl-ATV05)
Specifications
| Prod Model: | WL-ATV05 |
|---|
Product Description
Art.NO.:WL-ATV05ATV engine type: 4-stroke, air cooled
Transmission system: shaft drive, 4-speed, semi automatic
Bore x stroke: 52.4 x 49.5mm
Piston displacement: 107
Max power (kW/r/min): 5.5/8,000
Max torque (N.m./r/min): 6.8/5,500
Starting system: electric starter
Min turning radius: 2,400mm
Ground clearance: 100
Brake: front and rear by drum
Parking brake: mechanical lock
Tire: front 19 x 7-8/2.9Psi; rear 18 x 9.5-8/2.9Psi
Ignition type: C.D.I
Fuel tank capacity: 7.8L
Suspension: front leading arm and rear mono shock swing arm
Battery: 12V, 9Ah
Max load capacity: 85kg
Engine oil capacity: 0.95L
Gear oil capacity: 0.15L
Pressure lubrication, single cylinder
Wheelbase: 1,020mm
ATV size (L x W x H): 1,500 x 910 x 1,005mm
Compression ratio: 9.1 : 1
