Home Kingbopower Technology Co., Ltd. Rechargeable LiFePO4 Li-ion Battery Pack for Motorcycle

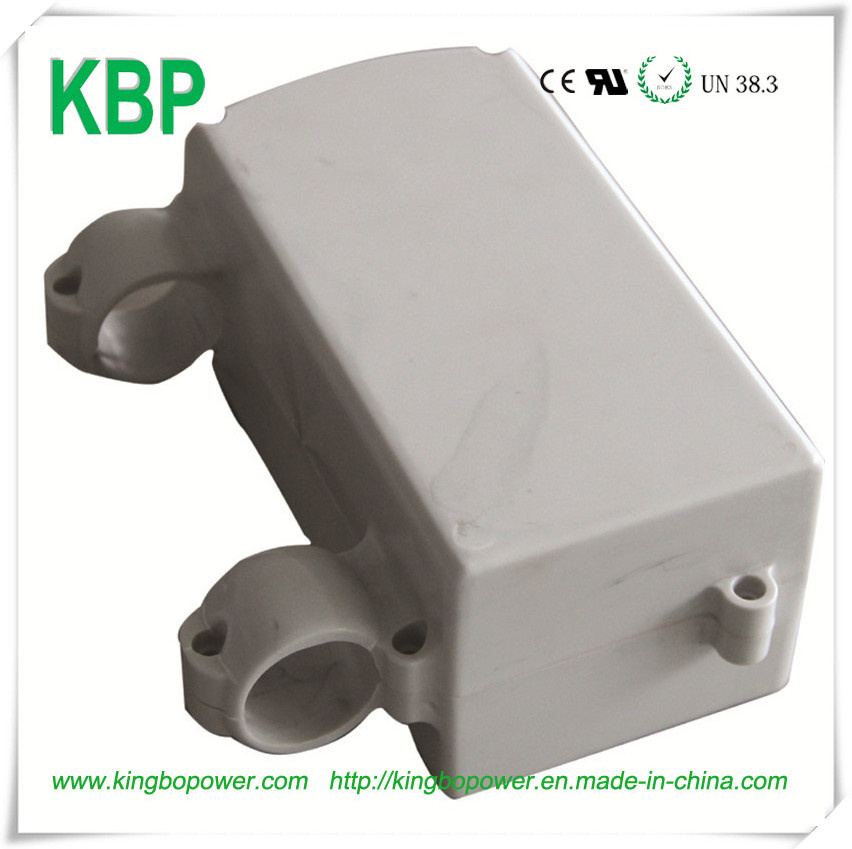

Rechargeable LiFePO4 Li-ion Battery Pack for Motorcycle

Rechargeable LiFePO4 Li-ion Battery Pack for Motorcycle
Price: US $ 98-100/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Specifications

Prod Model: 12V 20Ah
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Motorcycle Battery
Battery Materials: Lithium Ion Battery
Plastic Color: Gray
Weight: 2.5kg
Other Name: Powerful Battery
Certification: UL
Rated Capacity: 20ah
Color: Grey

Product Description

Product Name: Rechargeable LiFePO4 Li-ion Battery Pack for Motorcycle

Features :
A.   Long Cycle life : 2000 cycles
B.  Wide Capacity Range: 1000mAh-60Ah
C.  Stable Performance
D.  No memory effect
E.  High Safety
F.  Customized Batteries
G. Non-Toxic, environmentally-friendly product.
H. LiFePO4 cells do not incinerate or explode under extreme conditions



Services:
 A . OEM&ODM
B. Door to Door Service
C. Professional Technical Support
E. Warranty: 12Monthes-24Monthes

 Sample Time: 8-12 days after confirmed specification
Payment Term: T/T , Paypal ,Western Union.

Useage:
Portable speaker,Muti car jump starter , power bank ,Auto cleaner,GPS tracking, Digital ADSL device ,Flashligting , emergency lighting , laptop , solar board, ups power ,smart phone ,wireless microphone, MP3,Walk man, Cordless Phone, Notebook, Video Camera, Digital Camera, Digital Products, Portable DVD,Mobile Communication, Blue tooth Headset, Electronic Toys,Game Player, Solar LED light, Emergency lighting , Power tools, E-bike, Medical Equipment,etc.

Certification: UL , RoHS, CE, KC, UN38.3,MSDS


NoItemSpecificationsRemark
1Nominal Capacity20Ah±5%0.2C5A discharge at 25ºC
2Nominal Voltage12VOCV
3Charge CurrentStandard:4A;Max:6AWorking temperature:0~45ºC
4Charge cut-off Voltage25.5±0.3V
5Discharge CurrentStandard:0.5 C5A;Max:2C5AWorking temperature:-20~50ºC
6Discharge cut-off Voltage17.5 V
7Pack Voltage11.1V~12.6VShipment status
8Pack Impedance< 60 mΩ50% SOC at 25ºC
9WeightApprox:2.5kg
10Dimension75*158*240Approx


Storage of polymer lithium-ion batteries

Storage temperature
≤  1month     -20~45ºC
≤  3month     0~30ºC
≤  6month     20±5ºC

Humidity: 45-85%;
Batteries were 40~60% charged.

In case of over-discharge, batteries should be charged for one time every 3 months while storing. Batteries should be discharged and charged after being stored more than a year in order to activate it and restore energy.

       2,Batteries should be charged immediately after work in case of over-discharge
Handling Instructions
Read and observe the following warnings and precautions to ensure correct and safe use of LiFeCoPO4 batteries. It is claimed that we are free of any responsibility with the contingency and loss dueto the cells' wrong usage (not preferred in the product specification)
Danger!
- Do not immerse the battery in water or allow it to get wet.

- Do not use or store the battery near sources of heat such as a fire or heater.
- Do not use any chargers other than those recommended by WANMA.

- Do not reverse the positive(+) and negative(-) terminals.
- Do not connect the battery directly to wall outlets or car cigarette-lighter sockets.

- Do not put the battery into a fire or apply direct heat to it.
- Do not short-circuit the battery by connecting wires or other metal objects to the positive(+) and negative(-) terminals.

- Do not pierce the battery casing with a nail or other sharp object, break it open with a hammer, or step on
- Do not strike, throw or subject the battery to sever physical shock.

- Do not directly solder the battery terminals.

- Do not attempt to disassemble or modify the battery in any way.

- Do not place the battery in a microwave oven or pressurized container.

- Do not use the battery in combination with primary batteries(such as dry-cell batteries) or batteries of different capacity, type or brand.
  -Do not use the battery if it gives off an odor, generates heat, becomes discolored or deformed, or appears abnormal in any way. If the battery is in use or being recharged, remove it from the device or charger immediately and discontinue use.

Caution!
Do not use or store the battery where is exposed to extremely hot, such as under window of a car in direct sunlight in a hot day. Otherwise, the battery may be overheated. This can also reduce battery performance and/or shorten service life.

If the battery leaks and electrolyte gets in your eyes, do not rub them. Instead, rinse them with clean running water and immediately seek medical attention. If left as is, electrolyte can cause eye injury.
