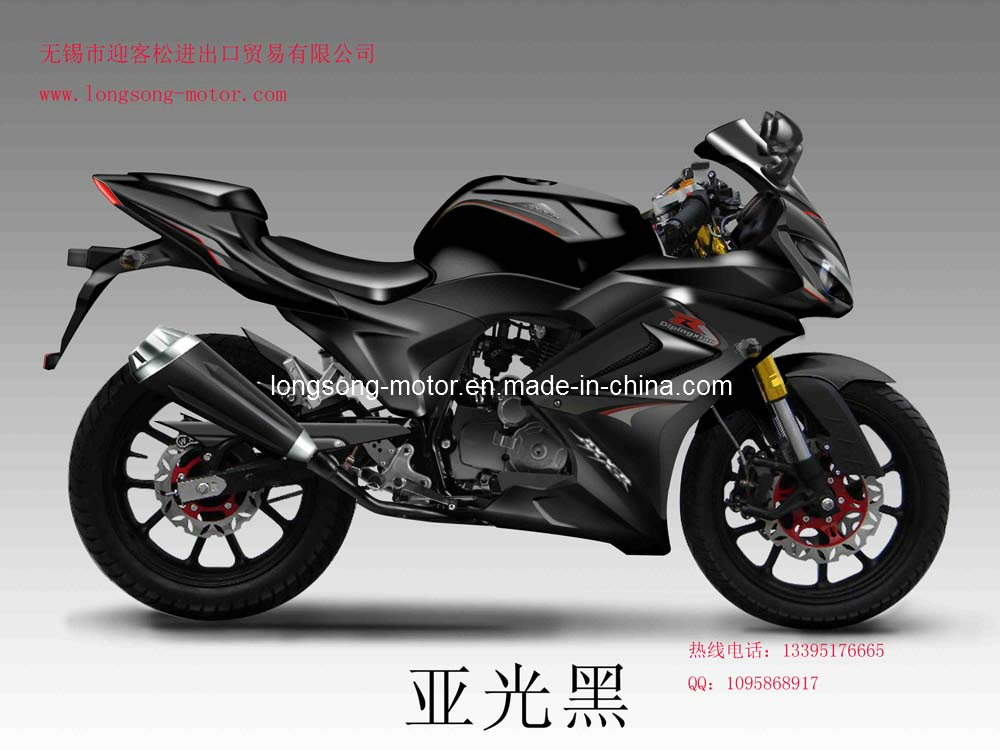

Racing Bike Horizon 250cc High Speed Motorcycle

Specifications

Prod Model:	Horizon 200, Horizon 250,Dipingxian 200, 250
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Type:	Racing Motorcycle
Displacement:	126-250CC
Engine Type:	4-Stroke
Certification:	CE
Condition:	New
Fuel:	Petrol

Product Description

Characteristic:


Item name	Racing Bike Horizon 250cc High Speed Motorcycle
Fit for	Adult
Color:	As customer requirements
Dimension (mm):	L*W*H(mm) 1960*720*1100
Lead time	Up to quantity
Shipping methods	1.By air or express for samples
	2.By sea for large formal order, we offer EXW Shanghai or FOB Shanghai

MODEL Horizon200 & Horizon250
L*W*H(mm) 1960*720*1100
Axle distance(mm) 1315
N. W(kg) 170
Loading weight(kg) 152
Rate passengers(including driver) 2
Steering type Handle Bar
Tire size Fr: 110/70-17 Rr: 140/70-17
Fuel petrol
Max Speed(km/h) ≥ 95
Brake Method Fr: Disc/Rr: Disc
Brake Type Fr: Hand/Rr: Foot

200 ENGINE SPECIFICATION
Engine Mode ZS165FML
Engine Name CBB200
Engine Type Singlecylinder, 4-stroke, air-cooling, camshaft upwards, tilting, with balance shaft
Displacement(ml) 198.8
Dimension(mm× Mm× Mm) 367mm× 324mm× 43mm
Net Weight(kg) 170
Max. Power(kw/r/min) 11.2/(7500± 5%)
Max. Torque(N. M/r/min) 15.6/(6000± 5%)
Compression Ratio 9.25: 1
Bore and Stroke(mm× Mm) 65.5× 59
Ignition method DCDI
Lubrication method Pressure Splash
Min. Fuel Consumption(g/Kw. H) ≤ 354
Starting method Electric/Kick
Clutch method Automatic Wet Multi-Plate
Gearshift method Constant mesh, two stage transmission, 5-speed Gearshift
Chosen model Standard model, cyclone model
