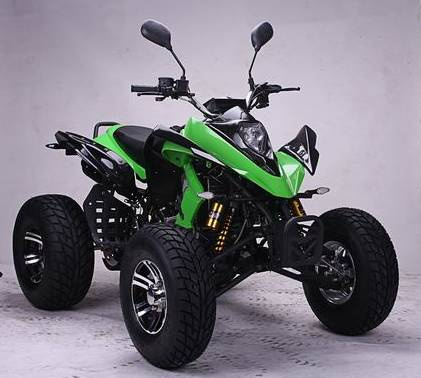

Quad (JZ-ATV-250H)

Specifications

Product Description

Engine
Type 245CC Water-Cooling Single-cylinder four Stroke
Bore x Stroke 67 x 65mm
Max Power Out 14/7000
Max Torque 9.45/7000
Ignition CDI
Starting System Electric
Drive Train
Transmission Five Speed & Return Gear in Engine
Max Speed 85KM/H
Suspension/Brake/Tire
Suspension/Front Independent Extended Double Wishbone with 410mm adjustable

Air- cell shock absorbs
Suspension/Rear Preload 375mm adjustable air-cell shock absorb
Brakes(Front/Rear) Hydraulic disc with two pistons
Tires(Front/Rear) 22X 10-10/22 X 11-10
Dimensions
L x W x H 1780 X 1210 X 1150 mm
Seat Height 850mm
Wheelbase(front/rear): 1140mm/890mm
Engine Ground Clearance 280mm
Rake 30 Degree
Dry Weight 205KG
Packing
Carton Size 1, 480 x 880 x 840mm
Container 20PCS/20ft; 62PCS/40HQ
