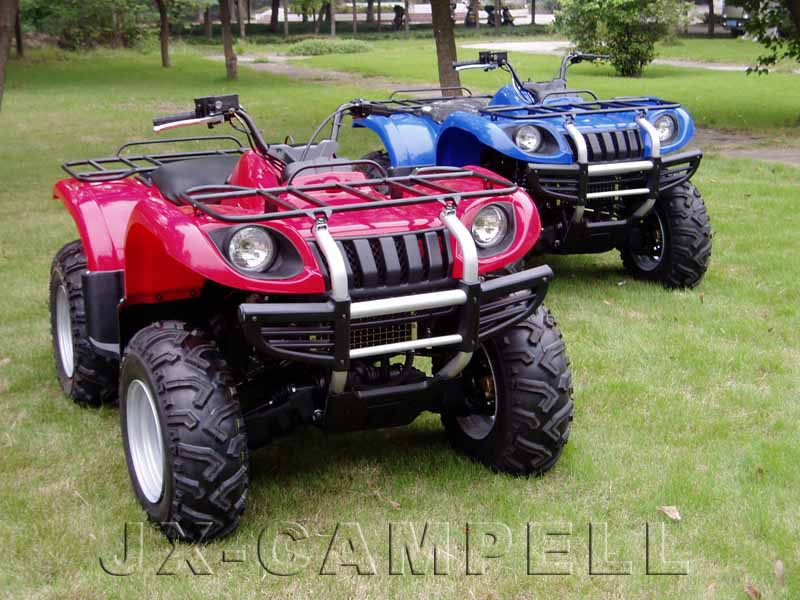

Home Jiangxi Campell Co., Ltd. Quad (DF4-650B)
| Prod Model: | DF4-650B |
|---|
Product Description
Manual Clutch 650cc----Manual Transmission
----New Design Body work
----On-demand 4WD function
----Independent Suspension System Front & Rear.
Engine: Horizontally opposed, Dual-cylinder, four-stroke, water-cooled, CDI
Displacement: 644 cm3 (650cc)
Bore x stroke: 76 x 71 mm (2.99 x 2.79 in. )
Carburetion: 8: 1
Starting Electric
Transmission: Manual
Gears: 1-2-3-4-N-R
Final drive: 2 x 4 / 4 x 4 shaft
Frame type: Semi-double-cradle, high-tensile steel
Front suspension / wheel travel: Independent -double A-arm
Rear suspension / wheel travel: Independent -double A-arm
Front tires: AT25 x 8-12
Rear tires: AT25 x 10-12
Front brakes: Hydraulic disc
Rear brakes: Hydraulic disc
Overall length: 2150mm 84.6 in. (LxWxH)
Overall width: 1180mm 49.2 in.
Overall height: 1200mm 47.2in.
Seat height: 880 mm (34.6 in. )
Ground clearance: 180 mm (8.7 in. )
Dry weight: 350KG(772 lbs)
Fuel capacity: 18 L (4.5 U. S gal)
Color choices: Black, Red, Blue, Green Camouflage white/green
Warranty: 1 year (factory limited warrantey).
Jiangxi Campell Co., Ltd is a manufacturer in Aviation parts, Seaplane Float, ATV, ATV Accessories, Dirt bike and Mini bike. We are one of branch company of Hongdu Aviation Industrial Group which is the State Owned Military Airplane Manufacturer in China. Besides airplane products, our group owns other general products such as motorcycle, golf car, electrical scooter, textile machinery, sports excerises and electrical equipments, etc.
The Stated Motorcycle Test Center locates on our group and this center is in charge of the Street Rules Motorcycle Approval Authorization for South China Motorcycle Manufacturer. Some Europe Standare of EEC & COC can also be approved by this center.
Jiangxi Campell Co., Ltd is the first company which engaging in the ATV 750cc in China, but that was only 2WD transmission system in 2000. Since Feb 2004, we started our 4WD ATV 650cc exploration job and finished test Dec 2004. We started our sales job in January 2005. Through nealy 2 years sales, we accumulated lots of customers' advice and opinion to improve its quality. We will never stop our improvement step. Now we already obtained the EEC, EPA and Carb certificates.
Meanwhile, we do produce lots of ATV accessories for more farm work. Such as winch, snow plow, fork lift and trailer, etc.
The Stated Motorcycle Test Center locates on our group and this center is in charge of the Street Rules Motorcycle Approval Authorization for South China Motorcycle Manufacturer. Some Europe Standare of EEC & COC can also be approved by this center.
Jiangxi Campell Co., Ltd is the first company which engaging in the ATV 750cc in China, but that was only 2WD transmission system in 2000. Since Feb 2004, we started our 4WD ATV 650cc exploration job and finished test Dec 2004. We started our sales job in January 2005. Through nealy 2 years sales, we accumulated lots of customers' advice and opinion to improve its quality. We will never stop our improvement step. Now we already obtained the EEC, EPA and Carb certificates.
Meanwhile, we do produce lots of ATV accessories for more farm work. Such as winch, snow plow, fork lift and trailer, etc.
