Specifications
Prod Model: |
AT2001-A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Size: |
195X118X110cm |
Max Power: |
13.0kw/7,500rpm |
Max Torque: |
10nm/5500rpm |
Capacity Weight: |
370kgs |
Starting: |
Electric |
Ignition: |
C.D.I |
Ground Clearance: |
80mm |
Brake: |
Drum/Disc |
Transmission: |
Automatic with Inside Reverse Gear |
Wheel Size: |
1300mm |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
ISO9001 |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
200CC |
Structure: |
Without Door |
Brake Type: |
Disc Brake |
Product Description

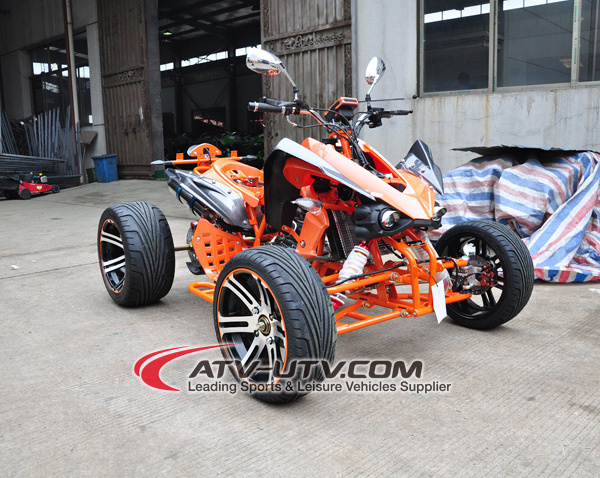

ATV
CE Approved 12 inch alloy wheel 200CC ATV Equipped with Powerful water Cooling Engine
AT2001-A
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 200cc
3. Engine type: Single cylinder, water-cooled
4. Starting system: Electric
5. Fuel tank capacity: 8L
6. Drive train: Chain
7. Ignition method: CDI
8. Max. Power 13.0kw/7, 500rpm
9. Max. Torque: 17.5N. M/5, 000rpm
10. Brakes: (Front/Rear)Disc/Disc
11. Transmission: Manual clutch, 4-speed, reverse gear, chain
12. Battery spec: 12V, 9AH
13. Front suspension detail: Double A x swing arm; Air chamber shock absorber
14. Rear suspension detail: Divided ballonet absorber
15. Wheel side: Front: 185x30-14, rear: 270x30-14
16. Vehicle dimension: 195x118x110cm
17. Wheel base: 140cm
18. Seat height from ground: 67cm
19. Min. Ground clearance: 80mm
20. Loading capacity: 370kgs
Package: Iron cage with carton outside
21. Net weight: 190kgs
22. Gross weight: 220kgs
23. Carton size: 170x112x75cm/1pc
24. Container: 18pcs/20', 42pcs/40'HQ
Minimum Order Quantity: 5pcs
