Specifications
Prod Model: |
JY125T-12A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Red, Yellow, Black |
Engine: |
4 Stroke |
Certification: |
COC |
Fuel Tank Capacity: |
<5L |
Folded: |
Unfolded |
Max Speed: |
80km |
Displacement: |
125cc |
Maximum Loading Capacity: |
150kg |
Product Description

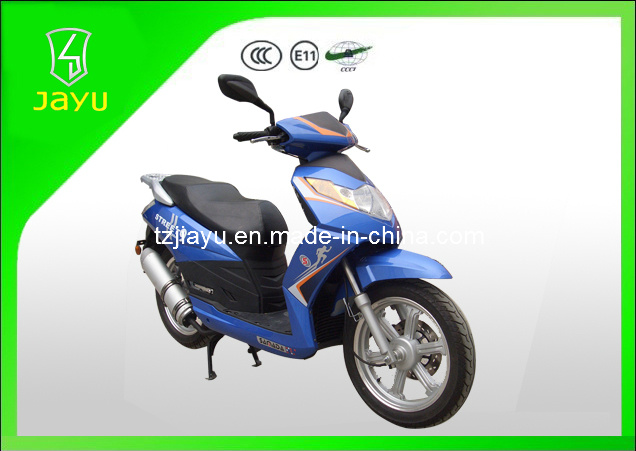

Professional Product 125cc Scooter (F6-125)
1. New stylish design/ design patent in China
2. Powerful / 4 stroke/ airl cooled engine
3. Fully automatic CVT transmission for easy driving
4. Scooter gives safety and comfort for high speed cruising
5. Maintenance-free battery
6. Dual eagle-eye style headlight
7. Diamond shape signal light
Advantage
1, It can match multicolor and stickers
2, we can do 125C power, also do we can do 50CC and 150CC models.
3, Front and rear vacuum tire: Durable, fasten, balanced, and beautiful. The tire is wear-resisting and aiti-explosion
4, Disc brake has high safety performance and has no noise
5, The scooter can install rear box and rear carrier
Scooter body parameter |
MODEL |
JY125T-41 (Storm-125) |
Dimensions (mm): |
1890 x 710 x 1160 |
Wheel base (mm): |
1285 |
Ground clearance (mm): |
105 |
Dry weight / Load capacity: (kg) |
101 / 150 |
Max.speed (km/h) : |
80 / 85 |
Economic fuel consuption (1/100km/L) : |
2.8 / 2.9 |
Exhaust system : |
Mute exhaust |
Fr brake / Rr brake : |
disc/drum |
Fr tyre / Rr tyre : |
120/70-12 |
Fuel tank capacity (L) : |
5 |
Battery |
12V 7AH / 12V 9AH |
Ignition |
CDI |
Front suspension : |
Spring shock |
Rear suspension : |
Spring shock absorber |
Scooter Engine parameter |
Engine mode: |
152QMI / 157QMJ |
Engine type |
1-cylinder,air-cooled, 4-stroke |
Displacement (cc) : |
124.6 / 149.6 |
Cylinder Diameter / Pinston Stroke |
52.4 x 57.8 ; 57.4 x 57.8 |
Transmission system : |
Belt CVT |
Compression ratio |
10.3:1 |
Start system : |
kick / electric |
Standard power(km/r/min): |
5.2/7500 ; 6.4/6500 |
Max. torque(n.m/r/min): |
7.3/6000 ; 8.3/7500 |
Packing information |
N.W / G.W (KG)/Packing model |
98 / 113; |
Packing model |
Full export carton package |
Packing size(mm) /20GP(CBU) |
1860 X 570 X 1180 / 26PCS |
Packing size(mm) /40HQ(SKD) |
1700 X 570 X 870 / 84PCS |
