Specifications
Prod Model: |
iChair-E05 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Oriented Intelligent Robotic Wheelchair |
Certification: |
CE |
Emission Standard: |
Euro 1 |
Condition: |
New |
Fuel: |
Electronic |
Product Description

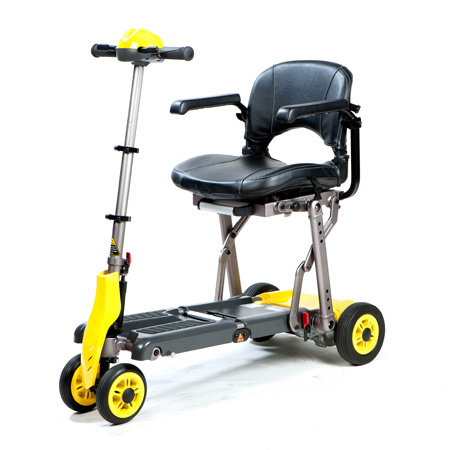

Oriented Intelligent Electronic Mobile Robotic Scooter/Wheelchair
Portable Folding Electric Scooter
Specification:
1.Height and angle adjustable steering tiller to fit individual user demand
2.Patented Twin-front -wheels w/spring suspension system offers excellent stability during sharp turning
3.Ideal for both indoor and outdoor use
4.Small foldable dimension for easy storage
5.Strong light-weight alloy aluminum frames for easy folding and carring
6.Simple dashboard
Weight Capacity | 113kg/ 250lb |
Max. Speed | 6kph/ 4mph |
Range | 18km/ 11.25mi. |
Turn Radius | 96cm/ 37.8" |
Ground Clearance | 9.5cm/ 3.7" |
Motor | DC 24V, 80W (Rating)/ 340W (Max) |
Controller | PG S-Drive 45 |
Battery | Li-lon Battery 24V/ 11.5AH |
Charger | 4A off-board |
Gradient | 6 |
Front Wheel | 6"(153x40) foam filled tire |
Rear Wheel | 7"(178x45) foam filled tire |
Brake | electromagnetic brake |
Dimension:
seat dimensions [cm/in] |
|
| D | E | F | G | H | I |
unfold | 40.5/16 | 35/13.8 | 31.5/12.4 | 59.5/23.4 | 39/15.4 | 78.5/31 |
folded | 40.5/16 | 35/13.8 | 31.5/12.4 | 59.5/23.4 | 39/15.4 | 78.5/31 |
overall dimensions [cm/in] | weight [kg/lb] |
| A | B | C | base w/seat | battery/ea | ttl w/batt. | capacity |
unfold | 98/38.6 | 43.5/17 | 87/34.2 | 24/53 | 1.7/3.7 | 25.7/56.7 | 113/250 |
folded | 52/20.5 | 43.5/17 | 64/25.2 | 24/53 | 1.7/3.7 | 25.7/56.7 | 113/250 |
Applications:
Designed for assisting disabled peole.
Allowing autonomous operation, omni-directional control and is adaptable for a variety of autonomous activities of the customer
