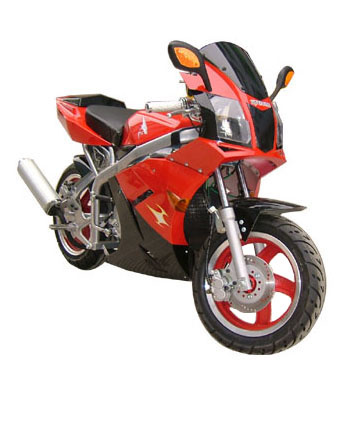

Pocket Bike (RN-P110-B)

Specifications

Prod Model:	RN-P110-B

Product Description

Specifications:
1) Engine Mod: HS139FMB-D
2) Engine Type: Single cylinder; 4 stroke; air-cooled
3) Max output and rotating speed: 2.5kW / 8,500rpm
4) Max torque and rotating speed: 3.0N.m / 6,500rpm
5) Cylinder bore: 39mm
6) Stroke: 41.4mm
7) Gearshift: four gears. Gear drive transmission by foot gear ratio
8) Ignition type: CDI
9) Displacement: 39ml
10) Compression Ratio: 9.0:1
11) Carburetor: piston type PZ17A
12) Lubrication system: 15W / 40-SE four stroke engine oil
13) Seat height: 780mm
14) Tires:
a) Front: 120/60-12
b) Rear: 130/60-13
15) Oil capacity: 1.75L
16) Dimensions (L x W x H): 1,970 x 750 x 940mm
Outer packing:
Carton dimension: 1,410 x 460 x 800mm
N.W.: 71kg
G.W.: 88kg
Conveyance:
Qty/40' HQ: 110pcs
