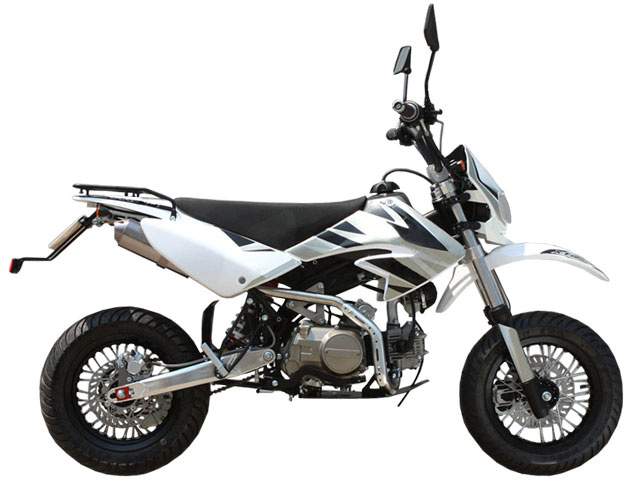

Pit Bike 125CC ( CM-R7L-1)

Specifications

Prod Model:	CM-R7L-1

Product Description

Engine
Engine: 125CC motor, single cylinder, 4-strokes, Air cooled; GEAR START N-1-2-3-4
Start method: Kick/Electric start
Bore*Stroke: 52.5*57mm
Compression Ration: 9.0: 1
Max power: 5.2KW/8000 ± 500r/min
Max torque: 7N. M/5000 ± 500r/min
Min fuel consumption: ≤ 367 g/KW. H
Ignition method: CDI

Frame and Swingarm
Colour: CRF70 Style plastic
Frame: Quality Guangdong made CRF70 style chromo frame with crandle; Removable Chromo sub-frame
Seat: Flat Seat
Swingarm BBR style Steel mono swingarm
Control system
Throttle Race quality throttle roller assay
Levers: Ergonomic standard brake lever
Handle bar: Chromo steel handle bar
Footpegs Steel high strengthen and non-slip foot pegs
Brake Pedal: Chromo brake pedal
Grips: Softer non-slip grips
Fuel Cap Plastic cap with billet Air-vent
Hyraulic and Brake

Front Brake: Hydraulic disk brake, quality brake caliper, front brake system with the double cliper
Rear brake: Hydraulic disk brake, quality brake caliper, rear brake system with the single enlarge caliper; New style disks
Suspension
Front Suspension: Quality UP side and down fork
Clamps & Mounts: Quality alum alloy standard clamps and mounts
Rear Suspension: Quality standard rear shock without chamber
Wheel and Tires

Front Tire: Quality on road tire 12"
Front wheel: 12" Quality steel rim with Alu alloy hub
Rear Tire: Quality on road tire 12"
Rear wheel: 12" Quality steel rim with Alu alloy hub
Packing Ways
Packing Ways: Iron-frame, Carton box
Bulk Pitbike Packing still avaible; Be divided into 3 Cartons
Volume
20ft: 60PCS
40ft: 125PCS
40HQ: 147PCS
