Home Wiztem Industry Company Limited on Sale Road Legal Quad Bikes for Sale
on Sale Road Legal Quad Bikes for Sale
| Price: | US $ 782-889/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P,Money Gram,Western Union |
Specifications
| Prod Model: | AT1503 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Size: | 174X95X109cm |
| Max Power: | 9.3kw/7500rpm |
| Max Torque: | 10nm/5500rpm |
| Capacity Weight: | 150kgs |
| Starting: | Electric |
| Ignition: | C.D.I |
| Lubrication: | Pressure and Splash |
| Brake: | Drum/Disc |
| Transmission: | Manual Reverse, Chain Drive |
| Wheel Size: | 1200mm |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | ISO9001 |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 150CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
Product Description

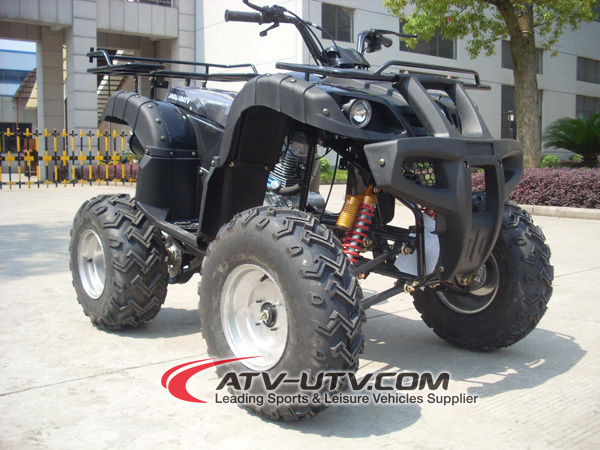

ATVNew 150cc ATV with front and rear Hydraulic disc
AT1501
Key Specifications:
1. Engine Type: 4-stroke, 1-cylinder, air-cooled
2. Product size: 1660*1050*1110
3. Displacement: 150cc
4. Max Power: 8.5/7500(kw/rpm)
5. Max Torque: 8.3/6000(Nm/rpm)
6. Starting: Electric
7. Ignition: C. D. I
8. Lubrication: Pressure and Splash
9. Compression Ratio: 10: 1
10. Transmission: Automatic with reverse
11. Final Drive: 2WD, chain drive system
12. Front/Rear Brake: Front: Hydraulic disc; Rear: Hydraulic disc
13. Max Speed: 65(Km/h)
14. Fuel Capacity: 4(L)
15. Capacity Weight: 150(kg)
16. Battery: 12V9Ah
17. Wheel Base: 1105(mm)
18. Front/Rear Tire: 21*7-8; 21*10-8
19. Seat Height: 860kg
20. Mini Ground Clearance: 125(mm)
21. Color: Black, red, blue, yellow, camo(+$18.85), painting red(+$15)
Package: Iron cage with carton outside
22. Net Weight: 150(kgs)
23. Gross Weight: 184(kgs)
24. Carton Size: 1480*850*850
25. Container capacity: 20pcs/20GP; 63pcs/40'HQ
Minimum Order Quantity: 5pcs
