Price: | US $ 820/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Paypal |
Specifications
Prod Model: | KY-10 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 900*520*630mm |
Max Uphill Angle: | 15 |
G.W/N.W: | 61kg /56kg |
Motor: | Brush |
Battery Type: | Lithium-Ion Battery |
Frame Material: | Aluminum/Alloy |
Voltage Of Battery: | 48V |
Certification: | RoHS |
Maximum Loading Capacity: | ≥120kg |
Wheel Hub: | Lightweight Alloy Hubs |
Folded: | Unfolded |
Charging Time: | 6-8h |
Part: | Motor |
Running Distance: | 25-30km |
Brake: | Lean Body Backward Gently |
Max Speed: | 18km/H |
Power: | 500W |

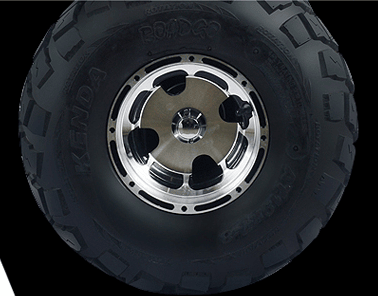

Wheel Size: | 19" |
Product Description

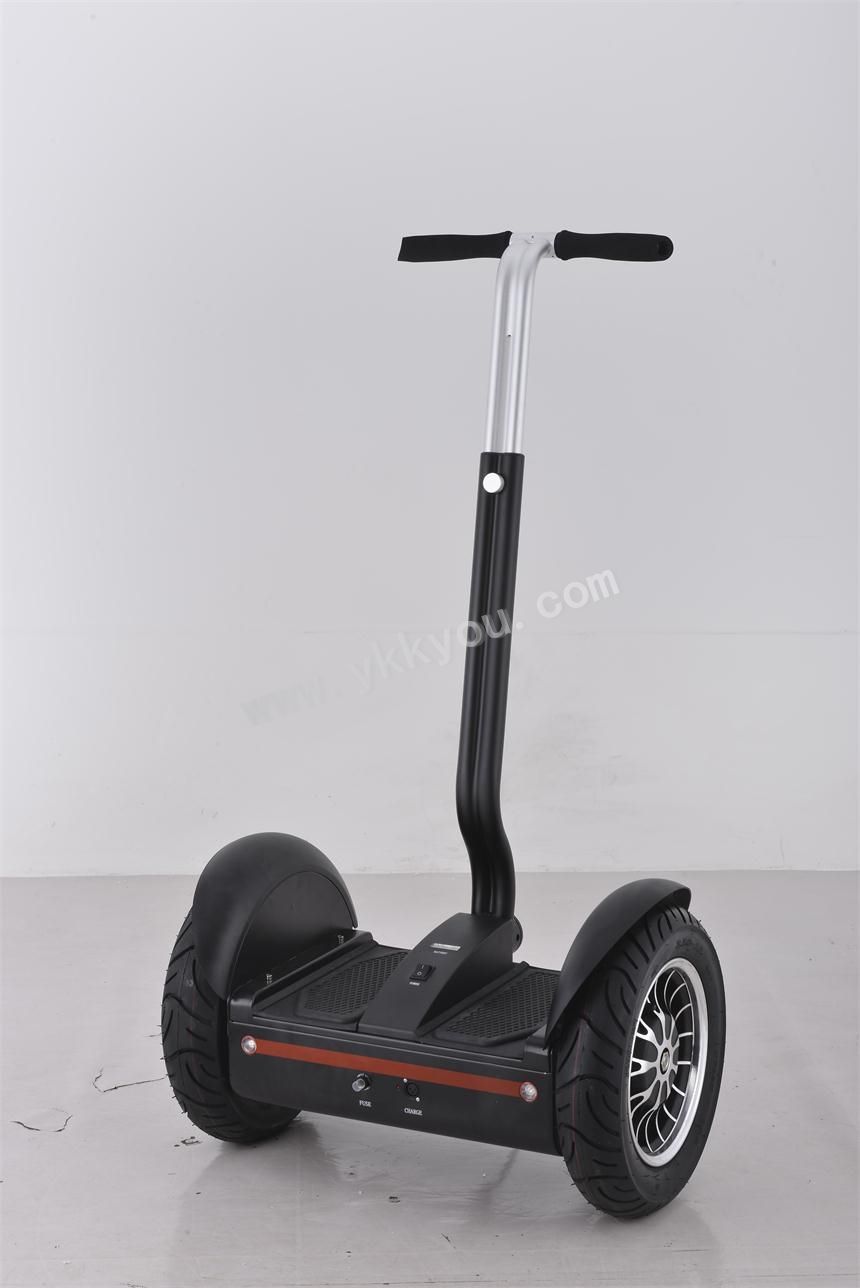

1. Furious appearanceModel | KY-10 Off-road style | KY-10 City style |
Tire size(inch) | 19" | 17" |
Battery | Lead-acid 36V 42AH (Endurance 25km) 48V 56AH (Endurance 38km) Li-ion 36V 13.2AH (Endurance 30km) 48V 11AH (Endurance 35km) | |
Max load(kg) | 125 | 125 |
Weight(kg) | 55 | 38 |
Max speed(km/h) | 18 | 18 |
Max uphill angle | 15° | 15° |
Charge time(h) | 6-8 | 6-8 |
Working temperature | -10ºC-40ºC | -10ºC-40ºC |
Platform height(cm) | 24 | 21 |
Chassis height(cm) | 13 | 8 |
Motion of the control shaft | Horizontal | Horizontal |
Package size(mm) | 900*520*630 | 720*450*570 |
