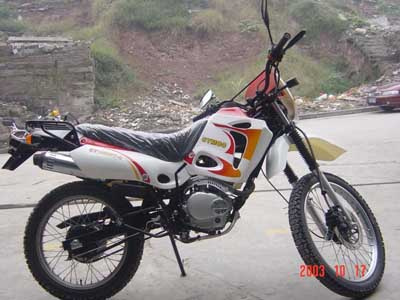

Home Chongqing Waitan Co., Ltd. Off-road CY200GY-2
Specifications
| Prod Model: | CY200GY-2 |
|---|
Product Description
LxWxH(mm): 2170x890x1210Wheel base(mm): 1350
Min.Ground clearance (mm):
Rim type: spoke / alloy
Dry weight(kg): 115
Fr. Tyre size and air pressure: 2.75-21/200KPa
Rr. tyre size and air pressure: 4.10-18/225KPa
Fr. Brake: disk/drum Rr. brake: drum
Max.loading capacity(kg): 150
Max. Speed (km/h): 95
Engine type: single-cylinder, air-cooled,four-stroke
Bore X Stroke (mm): 69x54
Displacement (ml): 198
Compression ratio: 9:2:1
Max.power (kw/r/min): 12.5kw/8000r/min
Max.torque (N.m/r/min): 15.5/7200±500N.m/rpm
starting mode: Electric Start/Kick Start
Ignition mode: CDI Electronic ignition
package: Iron and Seven-layer carton
