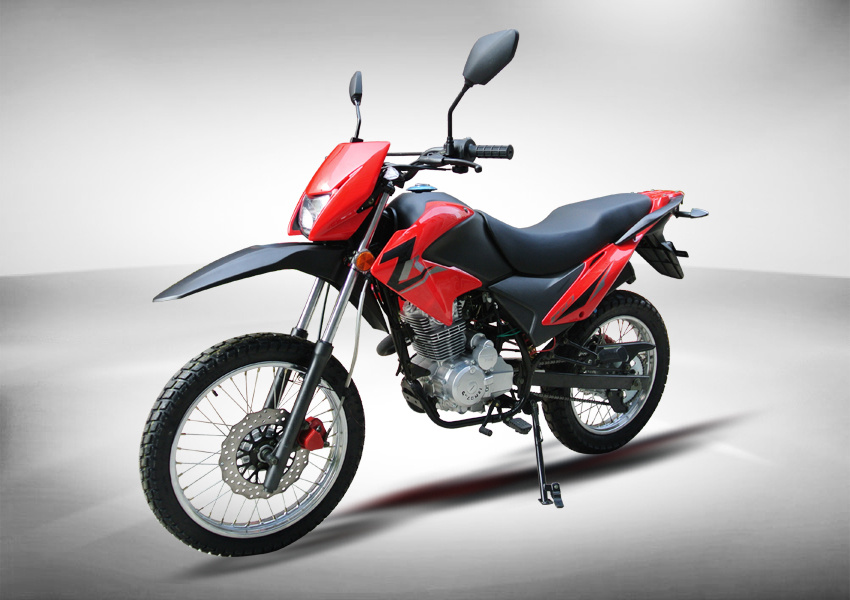

NXR 150 Bros Dirtbike for Honda (HD150GY)

Specifications

Prod Model:	HD150GY
Markets:	South America,Southeast Asia,Africa
ISO9001 Certificate Approval:	High Performance & Quality
Type:	Dirt Bike
Engine Type:	4-Stroke
Fuel:	Gas / Diesel
Certification:	CQC
Condition:	New
Displacement:	125cc & 150cc

Product Description

Overall Length(mm): 2080mm
Overall Width(mm): 830mm
Overall Height(mm): 1240mm
Wheelbase(mm): 1320mm
Ground Clearance(mm): 250mm
Dry Weight(kg): 95kg

Max. Load Mass(kg): 150kg
Max. Speed(km/h): 90km/h
Tire: Front: 2.75-21/200KPa Rear: 4.10-18/225Kpa
Rim Type: Spoke/Alloy
Driving Mode: By Chain
Brake Mode: Front: Disc Rear: Drum or Disc
Brake Operation Mode: Front: By Hand Rear: By Foot
Engine: 156FMI
Engine Type: Single Cylinder Four Stroke
Cylinder Type: Vertical
Bore X Stroke(mm): Dia. 56.5 X 49.5(mm)
Piston Displacement: 124cc
Compression Ratio: 9.0: 1
Max. Torque(N. M/rpm): 9.0/7500(N. M/rpm)
Lubrication: Compress & Splash Combined Type
Max. Output Power(kw/rpm): 8.2/7500(N. M/rpm)
Ignition: C. D. I

Started System: Electric Starter/Kick Starter
Engine Cooling: Air Cooling
Transmission: Five Speed Gearshift
Clutch: Manual, Wet and Multi-Disc type
Battery: 12V-7AH
Fuel Capacity: 13L
Economical fuel consumption(l/100km): 1.6
Shipping Size: (Front wheel, front fender and handlebar locked down)
Packing Size(LxWxH)(mm): 1690 X 460 X 870 mm
Weight: Net Weight: 95kgs Gross Weight: 120kgs
Quantity of Container:
20FCL: 26 units
40FCL: 56 units
40HQ: 78 units
