North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tire:
PU Material Solid Tire Made From Kexin in Taiwan
Turning Radius:
125cm
Climb Degree:
12degree
Gound Clearance:
6.8cm
Basket Load Ability:
6.8kgs
The Lamp:
LED Headlight , LED Turning Light, LED Rear Lights
Seat:
Cover by PU Material and Adjust 360 Degree
Color:
Red, Silver, Blue
N.W/G.W:
64kgs/56kgs(24V20ah)
Export Carton Dimension:
117X58X52cm
Product Description

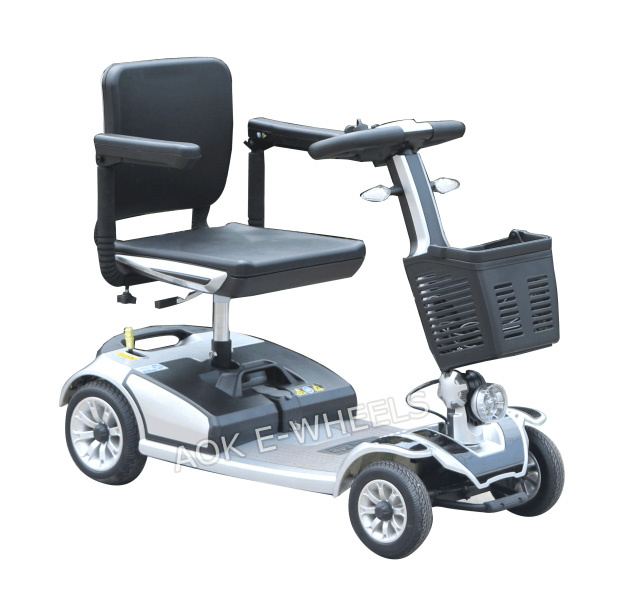

Nice Design 200W24V Four Wheel Mobility Scooter for Old People (ES-030)
Specification: 1.Turning radius:125CM 2.Max speed:7.8km/h (4.8MPH) 3.Driving distance: 25KM 4.Climb degree :12degree 5.Gound clearance :6.8CM 6.Wheel size : front 8" rear :9" 7.Tire: PU material solid tire made from kexin in taiwan 8.Battery box :split-type box,independent charge 9.Cable:pulg from molex in,USA,cable with UL certification 10.Brake systems : Electric magnetic brakes 11.Max Loading :136KGS 12.Basket load ability :6.8KGS
Performance & Main components: 1.Motor: 24V 200W 2.Controller panel: made from curtis in USA 3.With protectors :overload protector and low voltage protector 4.Battery: 12V 20AH, 2PCS/SET sealed lead-acid battery 5.Charger: 24V 2.5A ,split-type,wider band universal.110V-240V 6.Charging time: About 8hours 7. The lamp: LED headlight , LED turning light, LED rear lights &Emergency lights 8. Seat: cover by PU material and adjust 360 degree 9.Color: Red , Silver , Blue
Packaging: Unit packaging: Each in Color Box Packing : Each in a carton box N.W/G.W: 56kgs/64kgs(24V20AH) Qty / Export carton: 1 pc /ctn Export carton dimension: 117X58X52CM 1x20'footer FCL quantity: 80 pcs 1x40'footer FCL quantity: 160 pcs 1X40'HQ: 200pcs
Specification:
Turning radius
125CM
Max speed
7.8km/h (4.8MPH)
Driving distance
25KM
Climb degree
12degree
Gound clearance
6.8CM
Wheel size
front 8" rear :9"
Tire
PU material solid tire made from kexin in taiwan
Battery box
split-type box,independent charge
Cable
pulg from molex in,USA,cable with UL certification
Brake systems
Electric magnetic brakes
Max Loading
136KGS
Basket load ability
6.8KGS
Performance & Main components:
Motor
24V 200W
Controller panel
made from curtis in USA
With protectors
overload protector and low voltage protector
Battery
12V 20AH, 2PCS/SET sealed lead-acid battery
Charger
24V 2.5A ,split-type,wider band universal.110V240V
Charging time
About 8hours
The lamp
LED headlight , LED turning light, LED rear lights &Emergency lights
Seat
cover by PU material and adjust 360 degree
Color
Red , Silver , Blue
Packaging:
Unit packaging
Each in Color Box
Packing
Each in a carton box
N.W/G.W
56kgs/64kgs(24V20AH)
Qty / Export carton
1 pc/ctn
Export carton dimension
117X58X52CM
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.)
If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
