Home Wuxi Sinyo Wing Motorcycle Co., Ltd. Nice Color Good Design Motorcycle Scooter

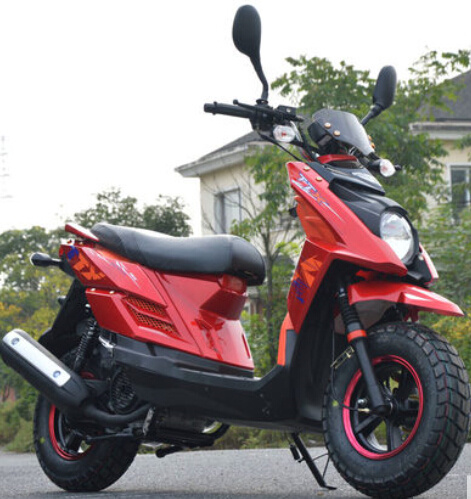

Nice Color Good Design Motorcycle Scooter
| Price: | US $ 520-540/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 24/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | TTX-1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Qty Container: | 75 Units/40hq |
| Color: | White/Black/Red/Blue |
| Brand Name: | Sinyo Wind/ OEM |
| Wheel: | 100/80-16(F) 120/80-16(R) |
| Ground Clearance: | 135mm |
| Max Speed: | >50km/h |
| Certification: | COC |
| Engine: | 4 Stroke |
| Maximum Loading Capacity: | 75-120kg |
| Fuel Tank Capacity: | 5-8L |
| Folded: | Unfolded |
| Displacement: | 50cc-150cc |
Product Description
Wuxi Sinyo Wing Motorcycle Co., Ltd. is located in Wuxi, Jiangsu Province, specialized in motorcycles, scooters, tricycles,E-scooters and CKD products. Our company has professional facilities, technologies and inspectors who have been working in this field for long years and could share the correct advice with clients!| Displacement | 49.5 | 124.6 | 149.6 |
| Engine | 1 Cylinder, 4 Stroke | 1 Cylinder, 4 Stroke | 1 Cylinder, 4 Stroke |
| Bore & Stroke | 39×41.5 | 52.4×57.8 | 57.4×57.8 |
| Cooling System | Air Cooled | Air Cooled | Air Cooled |
| Compression Ratio | 10.5:1 | 9.2:1 | 9.2:1 |
| Fuel feed | 90# | 90# | 90# |
| Max Power( Kw/rpm) | 2.5/7500 | 5.6/7500 | 6.3/7500 |
| Max Torque(N.M/rpm) | 2.8/5500 | 7.8/4000 | 9.2/5500 |
| Max Speed | 50 kmph | 80 kmph | 85 kmph |
| Ground clearance | 105 mm | 110 mm | 110 mm |
| Fuel consumption | 2.0L/100KM | 2.4L/100KM | 2.5L/100KM |
| Drive Train | CVT | CVT | CVT |
| Ignition | CDI | CDI | CDI |
| Transmission | Belt | Belt | Belt |
| Fuel tank capacity | 5L | 5L | 5L |
| Starting System | Electric+kick start | Electric+kick start | Electric+kick start |
| Front Brakes | Disc brake | Disc brake | Disc brake |
| Rear Brake | Drum brake | Drum brake | Drum brake |
| Front suspension | Hydraulic Suspension | Hydraulic Suspension | Hydraulic Suspension |
| Rear suspension | 1 Hydraulic Suspension | 2 Hydraulic Suspension | 2 Hydraulic Suspension |
| Front wheels | alum 120/70-12 | alum 120/70-12 | alum 120/70-12 |
| Rear wheels | alum 120/70-12 | alum 120/70-12 | alum 120/70-12 |
| Wheel Base | 1290 mm | 1310 mm | 1310 mm |
| Seat Height | 780 mm | 780 mm | 780 mm |
| Payload | 75kg | 150kg | 150kg |
| Net Weight | 87 kg | 105kg | 109 kg |
| Gross Weight | 107kg | 125 kg | 129 kg |
| Packing type | Steel + Carton | Steel + Carton | Steel + Carton |
| Packing size | 1700×570×860mm | 1700×570×860mm | 1700×570×860mm |
| 20' container | 26 units | 26 units | 26 units |
| 40' HQ container | 84 units | 84 units | 84 units |
Package & Loading
Our Services
1.We supply the whole set of spare parts of motorcycles, from Engines to Screws.
2.We guarantee 100% rate of qualified products in your factory.
3.Our engineers have more than 20 years experience in motorcycle production.
4.We guarantee 30 days of delivery time.
5.We guarantee that the vehicles for free service of 12 months or 12000 miles.
Company Information
Wuxi Sinyo Wing Motorcycle Co., Ltd. is located in Wuxi, Jiangsu Province, specialized in motorcycles, scooters, tricycles,E-scooters and CKD products. Our company has professional facilities, technologies and inspectors who have been working in this field for long years and could share the correct advice with clients!
