Specifications
Prod Model: |
JY150T-41 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue, Yellow, Mixed Color |
Engine: |
4 Stroke |
Certification: |
COC |
Fuel Tank Capacity: |
5-8L |
Folded: |
Unfolded |
Max Speed: |
85km/H |
Displacement: |
150cc |
Maximum Loading Capacity: |
150kgs |
Product Description

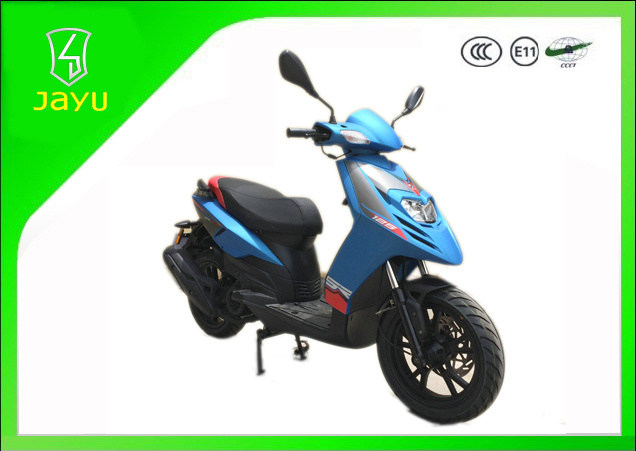

New type 150cc scooter (TYPHOON-150)
1. New stylish design/ design patent in China
2. Powerful 4 stroke/ air cooled engine
3. Fully automatic CVT transmission for easy driving
4.12inch aluminum wheels fit for big person
5. Big size scooter gives safety and comfort for high speed cruising
6 Maintenance-free battery
1, Selling points:
1, It can match multicolor and stickers
2, we can do 125C power, also do we can do 50CC and 125CC models.
3, Front and rear vacuum tire: Durable, fasten, balanced, and beautiful. The tire is wear-resisting and aiti-explosion.
4, Disc brake has high safety performance and has no noise
5, The motorcycle can install rear box and rear carrier
Scooter body parameter |
MODEL |
JY150T-41(TYPHOON-150) |
Dimensions (mm): |
2100 x 715 x 1100 |
Wheel base (mm): |
1450 |
Ground clearance (mm): |
115 |
Dry weight / Load capacity: (kg) |
118/ 138 |
Max.speed (km/h) : |
80 / 85 |
Economic fuel consuption (1/100km/L) : |
2.8 / 2.9 |
Exhaust system : |
Mute exhaust |
Fr brake / Rr brake : |
disc/disk |
Fr tyre / Rr tyre : |
139/90-10;235/30-12 |
Fuel tank capacity (L) : |
5 |
Battery |
12V 7AH / 12V 9AH |
Ignition |
CDI |
Front suspension : |
Spring shock |
Rear suspension : |
Spring shock absorber |
Scooter Engine parameter |
Engine mode: |
152QMI / 157QMJ |
Engine type |
1-cylinder,air-cooled, 4-stroke |
Displacement (cc) : |
124.6 / 149.6 |
Cylinder Diameter / Pinston Stroke |
52.4 x 57.8 ; 57.4 x 57.8 |
Transmission system : |
Belt CVT |
Compression ratio |
10.3:1 |
Start system : |
kick / electric |
Standard power(km/r/min): |
5.2/7500 ; 6.4/6500 |
Max. torque(n.m/r/min): |
7.3/6000 ; 8.3/7500 |
Packing information |
N.W / G.W (KG)/Packing model |
98 / 113; |
Packing model |
Full export carton package |
Packing size(mm) /20GP(CBU) |
1860 X 570 X 1180 / 26PCS |
Packing size(mm) /40HQ(SKD) |
1700 X 570 X 870 / 84PCS |
