Specifications
Prod Model: |
MT150R-J |
Markets: |
Southeast Asia,Africa,Eastern Asia |
Feature: |
High Performance & Quality |
Color Option: |
Many Color Optional |
Type: |
Racing Motorcycle |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CQC |
Condition: |
New |
Displacement: |
150cc |
Year Range: |
2015 |
Product Description

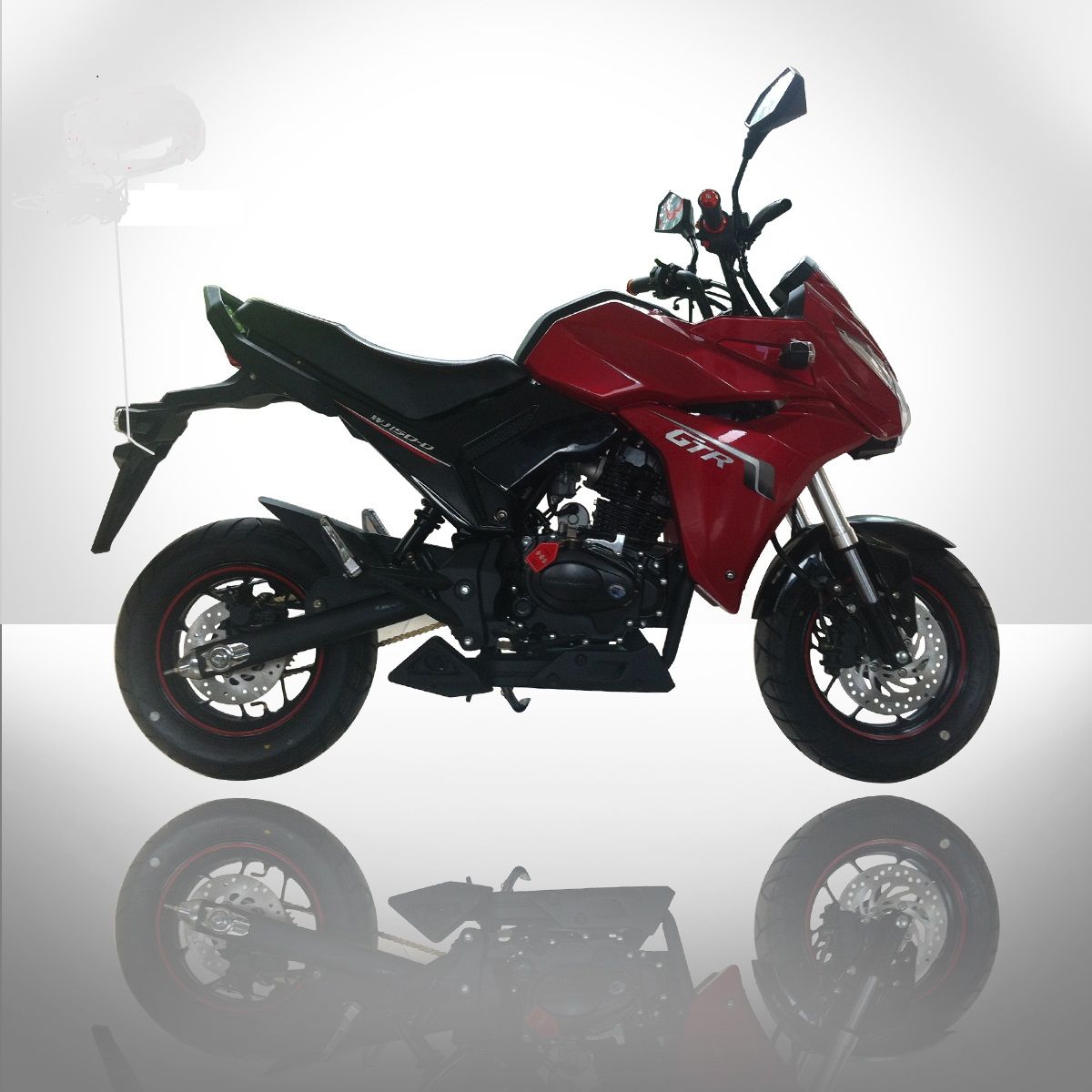

This is a New Racing bike developed to Asian Markets , with unique apperance,
super power, stable working performance, good price.
Engine |
|
Engine Type: | Single cylinder,air-cooled, four stroke, |
Displacement (ml): | 150cc (SUZUKI TSR150 CB) |
Bore X Stroke (mm): | 62 x49.5 |
Compression Ratio: | 9.2:1 |
Max. Power (kw/r/min) | 8.6/8000 |
Max. Torque (N.m/r/min): | 11/6000 |
Max. Speed (Km/h): | ≥90 |
Lubrication: | Pressure ,splash |
Clutch Type: | Multiplate wet clutch,Manual |
Ignition: | CDI |
Starting System: | Electric/Kick start |
Transmission System: | Chain drive |
The left and right steering angle: |
|
CHASSIS |
|
Front Brake: | Disc Brake |
Rear Brake: | Disc Brake |
Front Tire: | 120/70-12 |
Rear Tire: | 130/70-12 |
DIMENSIONS |
|
L X W X H (mm): | 1700*750*1040 |
Seat Height (mm): | 780 |
Wheelbase (mm): | 1215 |
Min. Ground Clearance (mm): | 160 |
Max. Permissionable Weight (kg): | 150 |
Rider Capacity: | 1 Person |
Dry. Weigth (kg): | 103 |
Fuel Tank Capacity (L): | 5.5 |
Battery | 12V/4Ah |
OTHERS |
Container Loading(20'FT): | 26units |
Container Loading(40HQ): | 91units |
