Prod Model: |
DN150T-2 |
Markets: |
South America,Africa,Mid East |
Engine: |
4 Stroke |
Max Speed: |
>50km/h |
Displacement: |
126-250CC |
Maximum Loading Capacity: |
≥120kg |
Fuel Tank Capacity: |
5-8L |
Folded: |
Unfolded |
Certification: |
CCC |
Product Description

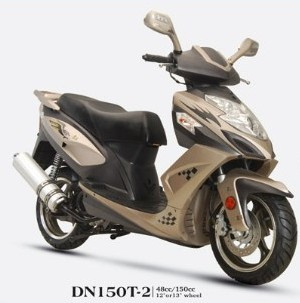

MODELDN 150T -2
Dimensions (mm): 1870 X 550 X 860
Wheel base (mm): 1380
Ground clearance (mm): 110
Dry weight / Load capacity: (kg) 125 / 150
Max.speed (km/h) :55
Economic fuel consuption (1/100km/L) : 2.1
Exhaust system :Mute exhaust
Fr brake / Rr brake : disc/drum
Fr tyre / Rr tyre : 130/60-13
Fuel tank capacity (L) : 6.5
Battery12V 7AH
IgnitionCDI
Front suspension : hydraulic
Rear suspension : Spring shock absorber
Scooter Engine parameter
Engine type1-cylinder,air-cooled, 4-stroke
Displacement (cc) : 149.5
Cylinder Diameter / Pinston Stroke39 x 41.5
Transmission system : Belt CVT
Compression ratio10.3:1
Start system : kick / electric
Standard power(km/r/min):2.2/7500
Max. torque(n.m/r/min): 3.5/4500
Packing information
N.W / G.W (KG)/Packing model105/ 126
Pack model Full export carton package
Packing size(mm) /40HQ(SKD)1870 X 550 X 860 / 75PCS
Wuxi Sunmotor Co., Ltd. was established in 1996. The company has an excellent location, holding more than 50, 000 square meter. Sunhou group has more than 20 engineers, over 500 employers and multinational sales-team.
The company produces 50CC to 250CC motorcycles, scooters, electric bikes, powerful engine tricycles and different spare parts. The company stands for "Customers come first, high quality, experienced management and continous development. " This is the mission of Sunhou.
The company received ISO9001: 2000 certificate in 2001 and the certificate ISO14001 in 2003. Furthermore, it obtained the CCC certificate for all its models.
